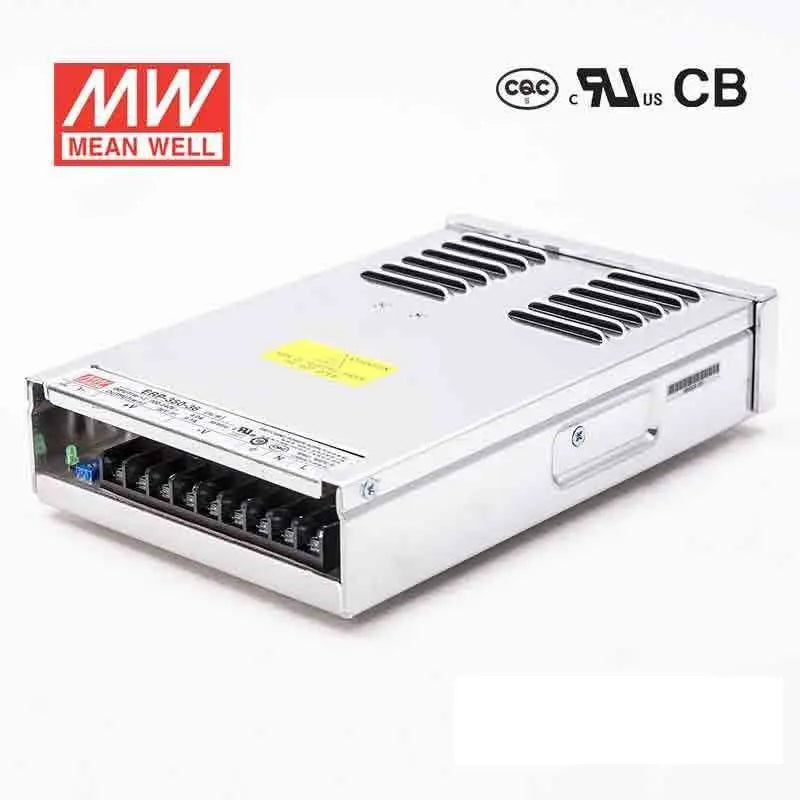

ERP-350-36

Name: ERP-350-36
Brand: MEAN WELL
Price: 42.57 USD
Availability: OutOfStock

$42.57

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$40.44

20+

$39.59

50+

$38.74

100+

$37.89

200+

$37.04

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

36V

Rated Current

9.7A

Power Rating

350W

Waterproof

Non-waterproof

Dimensions

8.67 x 5.11 x 1.88 in

Weight

1.98 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Features

AC input 180~264VAC

Withstand 300VAC surge input for 5 seconds

Design against rain splash

Protections: Short circuit / Overload /Over voltage/Over temperature

Cooling by free air convection

LED indicator for power on

Low cost,high reliability

100% full load burn-in test

3 years warranty

General Specification

AC input voltage range	180~264VAC ; 254~370VDC
AC inrush current (max.)	90A/230VAC
Over temperature protection	Shut down O/P voltage, recovers automatically after temperature goes down
Over voltage protection	Protection type :Hiccup mode, recovers automatically after fault condition is removed
Withstand voltage	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working temperature	-30~+60ºC (refer to output derating curve)
Safety standards	UL60950-1,GB4943.1-2011(except for ERP-350-12) approved
EMC standards	Refer to EN55022 (CISPR22) class A
Dimension (LxWxH)(mm)	220.4 x 130 x 48 mm
