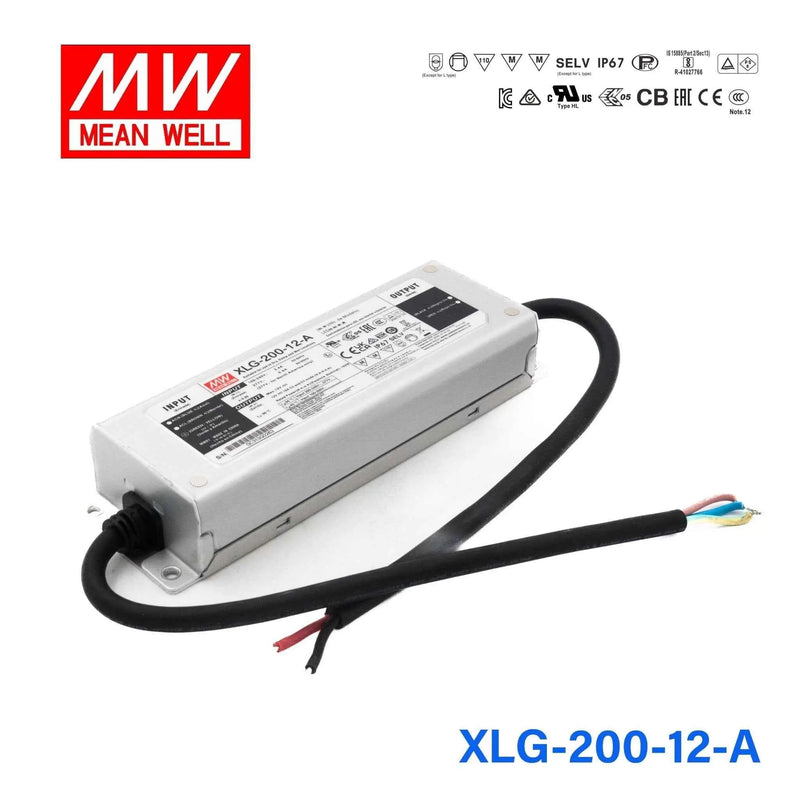

XLG-200-12-A
Manufacturer MEAN WELL

XLG-200-12-A

Availability: 2 can ship immediately

Request a Backorder

Submit your request and we will confirm lead time.

XLG-200-12-A SKU: 025-094

304 more units available on request (ready in 1ā€“2 business days). Contact customer service

Quantity
Quantity Prices (USD)
Quantity
Unit Price (USD)
1+
$33.49 USD
10+
$31.82 USD
20+
$31.15 USD
50+
$30.48 USD
100+
$29.81 USD
200+
$29.14 USD
All prices are displayed in USD. *Import tariff is included in the listed price. You pay exactly what you seeā€”no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
100V~305V
Output Voltage
12V
Rated Current
16A
Power Rating
192W
Waterproof
IP67
Dimensions & Weight
7.83 x 2.48 x 1.39 in1.87 lbs

Datasheet (PDF)

Open PDF
If the PDF doesnā€™t load here, click ā€œOpen PDFā€.

Features

Wide input range 100~305VAC (Class I)
Full power output at 70~100% constant power mode operation
Metal case with IP67, suitable for outdoor application
Surge protection with 6KV/4KV (10KV/6KV optional)
3 in 1 dimming function (Dim to off and isolation design)
India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours
Protection functions: OVP/SCP/OCP/OTP
Lifetime > 50,000 hrs. and 5 years warranty

General SpecificationĀ

AC input voltage range 100~305VAC;142~431VDC
AC inrush current Cold start, 65A at 230VAC
DC adjustment range Ā±10% rated output voltage
Over-voltage protection 125%~150% rated output voltage
Setup, rise, hold up time 500ms, 100ms, 12ms
Withstand voltage I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature -40~+90Ā°CĀ
Safety standards UL8750 approved; ENEC BS EN/EN61347-1; EAC TP TC 004;Ā NOM-058-SCFI-2017;Ā IP67 approved
EMC standards EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
Dimension (LxWxH) 199x63x35.5
Packing 16pcs / 14.2kg

SKU: 025-094
