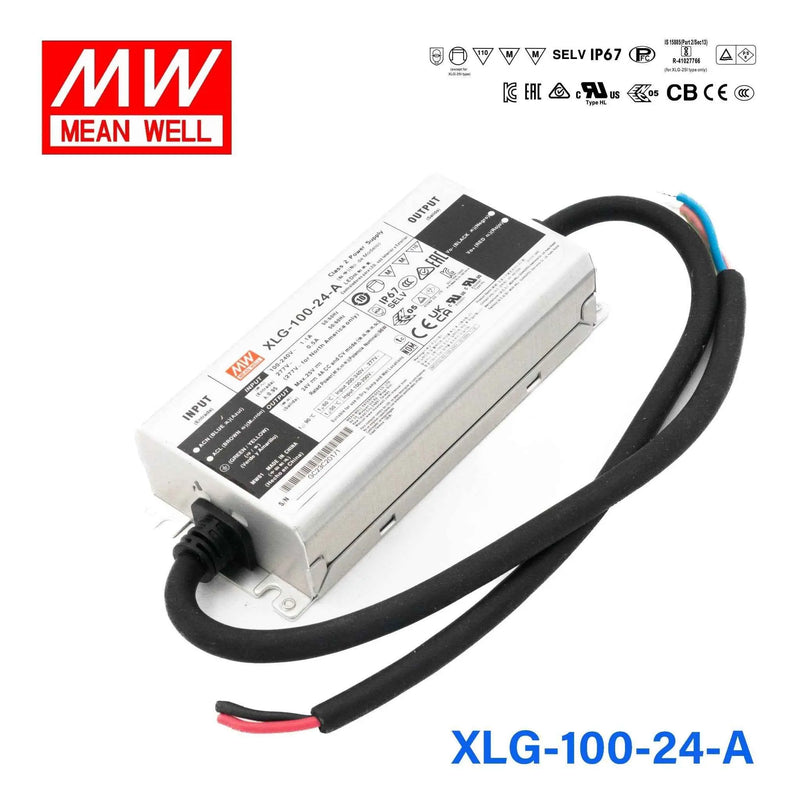

XLG-100-24-A

Name: XLG-100-24-A
Brand: MEAN WELL
SKU: 025-106
Price: 30.89 USD
Availability: InStock

$30.89

Availability: ✔ 23 can ship immediately

ℹ️ Lead time for quantities greater than shown, contact us

Place your order within --:--:-- to ensure shipment Today

Quantity Prices

Quantity

Unit Price

10+

$29.35

20+

$28.73

50+

$28.11

100+

$27.49

200+

$26.87

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

24V

Rated Current

Power Rating

96W

Waterproof

IP67

Dimensions

5.51 x 2.48 x 1.25 in

Weight

1.27 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Features

Wide input range 100~305VAC (Class I)

Full power output at 70~100% constant power mode operation

Metal case with IP67, suitable for outdoor application

LVLE(H type), Class 2 (24V) power unit

Surge protection with 6KV/4KV (10KV/6KV optional)

3 in 1 dimming function(Dim to off and isolation design)

India (EESL) version with input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours

Protection functions: OVP/SCP/OCP/OTP

Lifetime > 50,000 hrs. and 5 years warranty

General Specification

AC input voltage range	100~305VAC;142~431VDC
AC inrush current	Cold start, 50A at 230VAC
DC adjustment range	±10% rated output voltage
Over-voltage protection	112%~150% rated output voltage
Setup, rise, hold up time	500ms, 100ms, 12ms
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature	-40~+90°C
Safety standards	UL8750 approved; ENEC BS EN/EN61347-1; EAC TP TC 004; NOM-058-SCFI-2017; IP67 approved
EMC standards	EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
Dimension (LxWxH)	140x63x32
Packing	24pcs / 15kg
