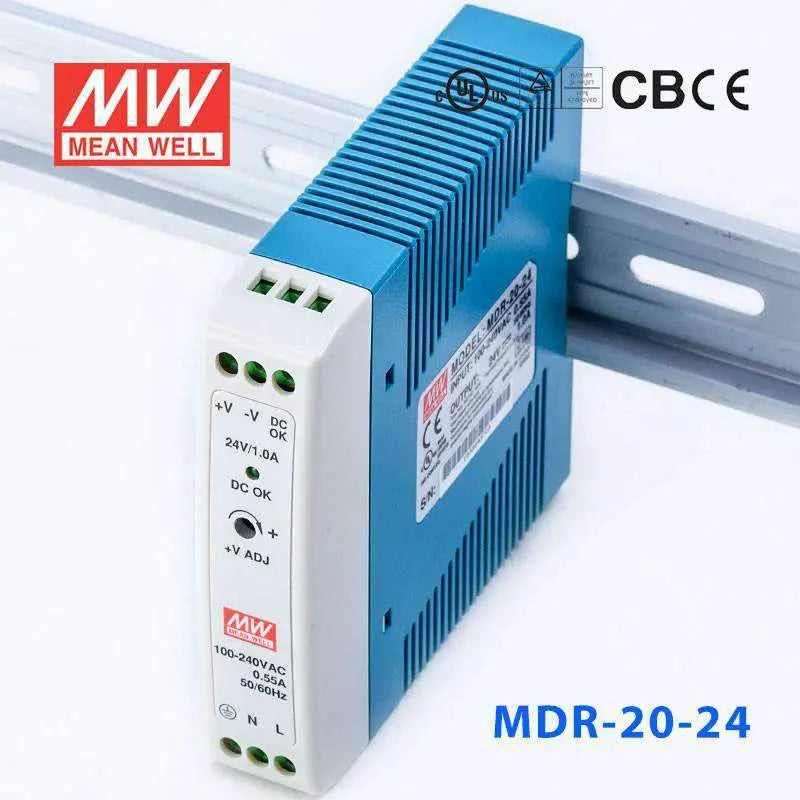

MDR-20-24

Name: MDR-20-24
Brand: MEAN WELL
SKU: 33613
Price: 15.45 USD
Availability: InStock

$15.45

Availability: ✔ 70 can ship immediately

ℹ️ Lead time for quantities greater than shown, contact us

Place your order within --:--:-- to ensure shipment Today

Quantity Prices

Quantity

Unit Price

10+

$14.68

20+

$14.37

50+

$14.06

100+

$13.75

200+

$13.44

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

24V

Rated Current

Power Rating

24W

Waterproof

Non-waterproof

Dimensions

3.93 x 3.54 x 0.88 in

Weight

0.37 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Features

Universal AC input / Full range

Installed on DIN rail TS35 / 7.5 or 15

Protections: Short circuit / Overload / Over voltage

No load power consumption <0.75W

LED indicator for power on

DC OK signal output

Cooling by free air convection

100% full load burn-in test

3 years warranty

General Specification

AC input voltage range	85~264VAC; 120~370VDC
AC inrush current	Cold start, 20A at 115VAC, 40A at 230VAC
DC adjustment range	±10% rated output voltage
Overload protection	105%~160% constant current limiting, auto-recovery
Over voltage protection	115%~135% rated output voltage
Setup, rise, hold up time	500ms, 30ms, 50ms
Withstand voltage	I/P-O/P:3kVAC, I/P-FG:1.5kVAC, 1minute
Working temperature	-20~+70°C (refer to output derating curve)
DC OK signal	Open collector
Safety standards	UL508, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61204-3
Connection	I/P: 3 poles, O/P: 3 poles screw DIN terminal
Dimension (LxWxH)	22.5x90x100
Packing	72pcs / 14.7kg
