MEAN WELL

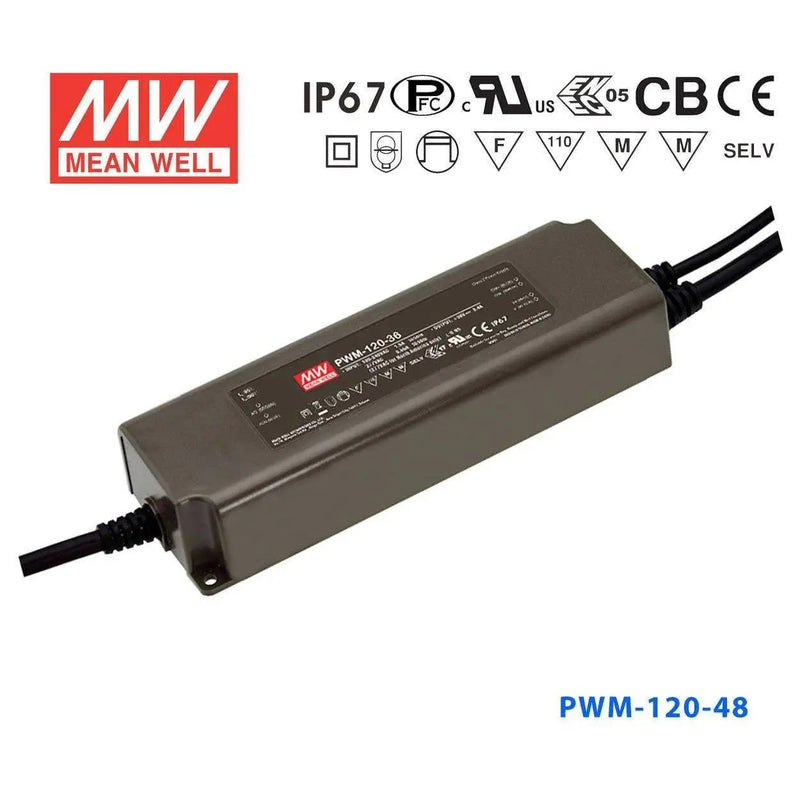

PWM-120-48

Name: PWM-120-48
Brand: MEAN WELL
SKU: 71620
Price: 46.41 USD
Availability: InStock

Manufacturer Model Name

Availability: 30 can ship immediately

Quantity Prices (USD)

Quantity

Unit Price (USD)

$46.41 USD

10+

$44.09 USD

20+

$43.16 USD

50+

$42.23 USD

100+

$41.30 USD

200+

$40.38 USD

All prices are displayed in USD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

48V

Rated Current

2.5A

Power Rating

120W

Waterproof

IP67

Dimensions

7.51 x 2.48 x 1.47 in

Weight

2.13 lbs

Features

Universal AC input (up to 305VAC) / Full range

Constant voltage PWM style output

Built-in active PFC function

High efficiency up to 90.5%

No load power consumption <0.5W

Protections: Short circuit / Overload / Over voltage / Over temperature

Fully isolated plastic case

Fully encapsulated with IP67 level

Class 2 power unit

Isolation class II, no F.G.

Built-in 3 in 1 dimming (dim-to-off);DALI

Suitable for dry, damp and wet location

Suitable for LED strip lighting

5 years warranty

General Specification

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 60A at 230VAC
Overload protection	108%~120% hiccup mode, auto-recovery
Over voltage protection	Shut down o/p voltage, re-power on to recover
Over temp. protection	Shut down output voltage, re-power on to recover
Setup, rise, hold up time	500ms, 80ms, 16ms at full load and 230VAC
Withstand voltage	I/P-O/P: 3.75kVAC
Working temperature	-40~+90ºC (refer to output derating curve)
Safety standards	UL8750, CSA C22.2 No.250.13-12,ENEC EN61347-1, EN61347-2-13 independent, EN62384 approved ; Design refer to EN60335-1
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input	UL rated, SJTW 18AWGx3C (30cm)
Connection Output	SJTW 14AWG x2C (30cm)+UL24645 18AWG x2C (30cm)
Dimension (LxWxH) (mm)	191x63x 37.5
Packing	15pcs / 15.6kg

Environmental Documents

📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
