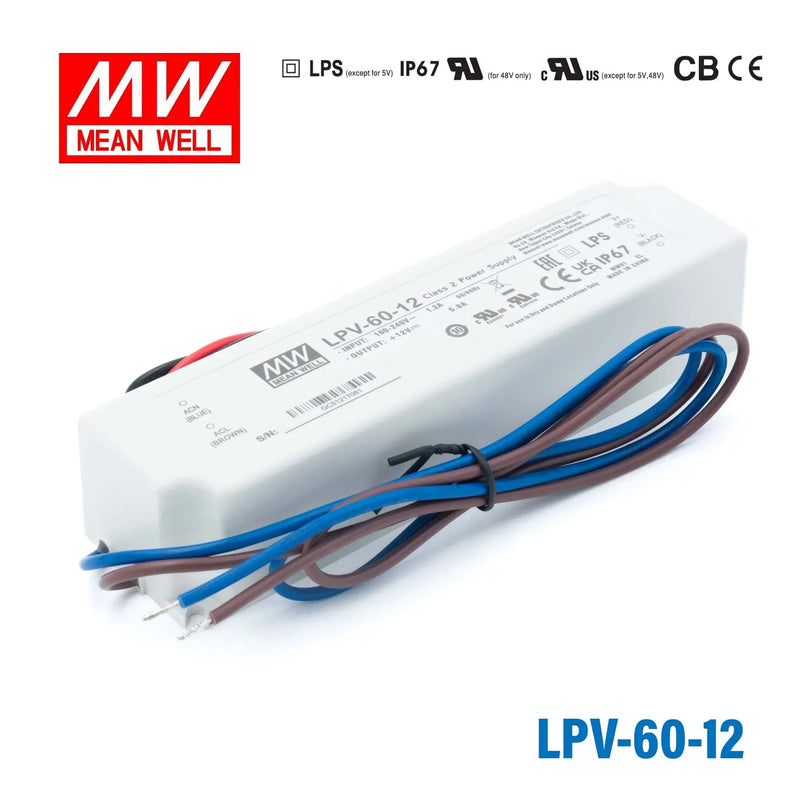

LPV-60-12 MEAN WELL Power Supply | HTD Electronics
Manufacturer MEAN WELL

LPV-60-12

Availability: 588 can ship immediately

Request a Backorder

Submit your request and we will confirm lead time.

LPV-60-12 SKU: 33505

1,824 more units available on request (ready in 1–2 business days). Contact customer service

Quantity
Quantity Prices (USD)
Quantity
Unit Price (USD)
1+
$14.26 USD
10+
$13.55 USD
20+
$13.26 USD
50+
$12.98 USD
100+
$12.69 USD
200+
$12.41 USD
All prices are displayed in USD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
90V~264V
Output Voltage
12V
Rated Current
5A
Power Rating
60W
Waterproof
IP67
Dimensions & Weight
6.39 x 1.67 x 1.25 in0.88 lbs

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

Features

90~264VAC input
Fully encapsulated with IP67 level
Protections: Short circuit / Overload / Over voltage
Constant voltage design (C.V. mode)
Class 2 power unit / Pass LPS
Isolation class II, no F.G.
Withstand 300VAC surge input for 5 seconds
Cooling by free air convection
100% full load burn-in test
Low cost, high reliability
Suitable for LED-based decorative/architectural lighting, LED stage and theater lighting, and LED electronic displays
2 years warranty


General Specification

AC input voltage range 90~264VAC; 127~370VDC
AC inrush current Cold start, 60A at 230VAC
Overload protection 110%~150% hiccup mode, auto-recovery
Over voltage protection 115%~135% rated output voltage
Withstand voltage I/P-O/P: 3kVAC
Working temperature -30~+70°C
Vibration 10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standards UL879 (except for LPV-60-5), UL1310 (except for LPV-60-5) approved
EMC standards EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
Connection Input UL rated, 18AWGx2C (60cm)
Connection Output UL rated, 16AWGx2C (60cm)
Dimension (LxWxH)(mm) 162.5x 42.5x 32
SKU: 33505

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
