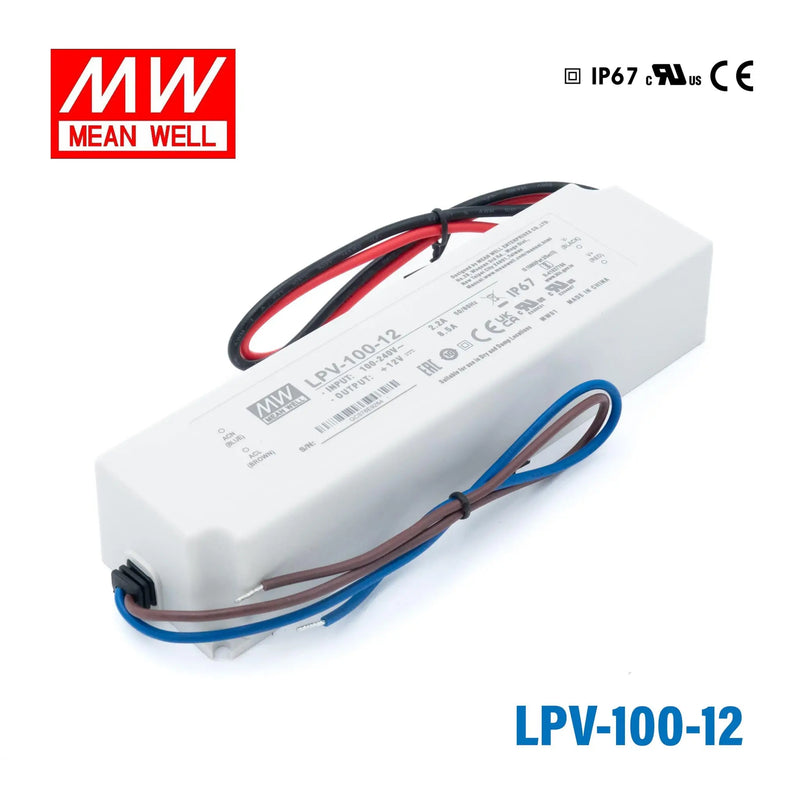

LPV-100-12
Manufacturer MEAN WELL

LPV-100-12

Availability: 204 can ship immediately

Request a Backorder

Submit your request and we will confirm lead time.

LPV-100-12 SKU: 33490

720 more units available on request (ready in 1ā€“2 business days). Contact customer service

Quantity
Quantity Prices (USD)
Quantity
Unit Price (USD)
1+
$23.46 USD
10+
$22.29 USD
20+
$21.82 USD
50+
$21.35 USD
100+
$20.88 USD
200+
$20.41 USD
All prices are displayed in USD. *Import tariff is included in the listed price. You pay exactly what you seeā€”no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
90V~264V
Output Voltage
12V
Rated Current
8.5A
Power Rating
102W
Waterproof
IP67
Dimensions & Weight
7.48 x 2.04 x 1.45 in1.38 lbs

Datasheet (PDF)

Open PDF
If the PDF doesnā€™t load here, click ā€œOpen PDFā€.

Features

90~264VAC input
Fully encapsulated with IP67 level
Protections: Short circuit / Overload / Over voltage
Constant voltage design (C.V. mode)
Class 2 power unit
Isolation class II, no F.G.
Withstand 300VAC surge input for 5 seconds
Cooling by free air convection
100% full load burn-in test
Low cost, high reliability
Suitable for LED-based decorative/architectural lighting, LED stage and theater lighting, and LED electronic displays
2 years warranty

General SpecificationĀ

AC input voltage range 90~264VAC; 127~370VDC
AC inrush current Cold start, 75A at 230VAC
Overload protection 110%~150% hiccup mode, auto-recovery
Over voltage protection 115%~135% rated output voltage
Withstand voltage I/P-O/P: 3kVAC
Working temperature -25~+70Ā°C (refer to output derating curve)
Vibration 10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standards Design refer to IEC60950-1
EMC standards EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
Connection Input UL rated, 18AWGx2C (30cm)
Connection Output UL rated, 14AWGx2C (30cm)
Dimension (LxWxH)(mm) 190x 52x 37
SKU: 33490

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
šŸ“„ E6) COC-REACH (2026/01/28) šŸ“„ E9) CMRT (2025/04/25) šŸ“„ E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) šŸ“„ REACH Certificate (PDF) (2020/12/03) šŸ“„ ROHS Certificate (PDF) (2020/05/29) šŸ“„ E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
