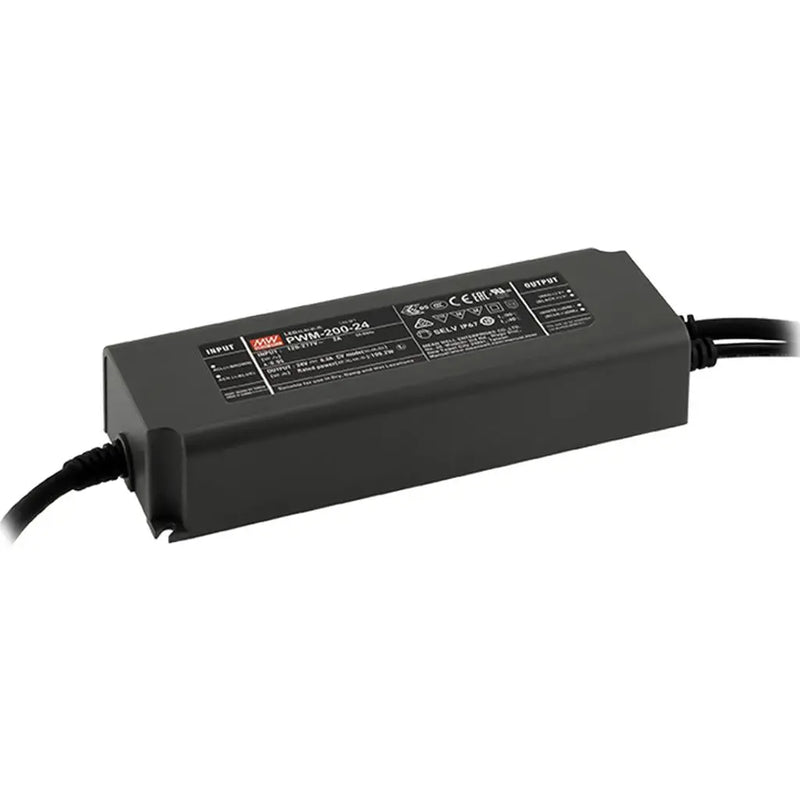

PWM-200-24

Name: PWM-200-24
Brand: MEAN WELL
SKU: 025-126
Price: 56.91 USD
Availability: InStock

$56.91

Availability: ✔ 7 can ship immediately

ℹ️ Lead time for quantities greater than shown, contact us

Place your order within --:--:-- to ensure shipment Today

Quantity Prices

Quantity

Unit Price

10+

$54.06

20+

$52.93

50+

$51.79

100+

$50.65

200+

$49.51

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

24V

Rated Current

8.3A

Power Rating

200W

Waterproof

IP67

Dimensions

7.67 x 2.67 x 1.55 in

Weight

2.27 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Features

Constant Voltage PWM style output with user changeable frequency up to 4KHz compliant IEEE1789-2015

Plastic housing with class II and PFC design

Emergency lighting application is available according to IEC61347-2-13

Standby power consumption<0.5W

Fully encapsulated with IP67 level

Function options: 3 in 1 dimming (dim-to-off and Isolated Design)/DALI-2

Minimum Dimming level 0.2% for DA2 type

Typical lifetime >50000 hours

5 years warranty

General Specification

AC input voltage range	100~305VAC \| 142~431VDC
AC inrush current (max.)	COLD START 65A(twidth=550 s measured at 50% Ipeak) at 230V μ AC; Per NEMA 410
Overload protection	108%~135% \| Hiccup mode or Constant current limiting recovers automatically after the fault condition is removed
Over-voltage protection	108%~150% \| Shut down o/p voltage, re-power on to recover after fault condition is removed
Over temp. protection	Shut down o/p voltage, re-power on to recover after fault condition is removed
Setup, rise, hold up time	500ms, 80ms/230VAC, 1200ms, 80ms/115VAC
Withstand voltage	I/P-O/P:3.75kVAC
Working temperature	-40~+85ºC (refer to output derating curve)
Safety standards	UL8750, CSA C22.2 No.250.13-12,ENEC EN61347-1, EN61347-2-13 independent, EN62384 approved ; Design refer to EN60335-1
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input	UL rated, SJTW 18AWGx3C (30cm)
Connection Output	SJTW 14AWG x2C (30cm)+UL24645 18AWG x2C (30cm)
Dimension (LxWxH) (mm)	195 x 68 x 39.5mm
Packing	1.03Kg; 12pcs/13.4Kg/0.71CUFT
