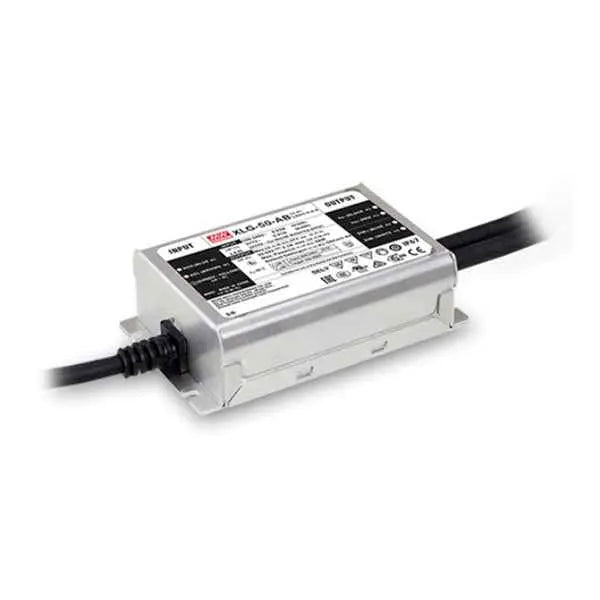

XLG-50-A

Name: XLG-50-A
Brand: MEAN WELL
Price: 21.75 USD
Availability: OutOfStock

$21.75

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$20.66

20+

$20.23

50+

$19.79

100+

$19.36

200+

$18.92

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

57V

Rated Current

Power Rating

50W

Waterproof

IP67

Dimensions

4.13 x 2.48 x 1.25 in

Weight

0.90 lbs

Features

Constant power mode output

Metal housing design with functional ground

Built-in active PFC function

Class 2 power unit

No old / standby power consumption <0.5W

IP67 rating for indoor or outdoor installations

Function options: output adjustable via potentiometer 3 in 1 dimming function (Dim to off and Isolation design)

Lifetime > 50,000 hrs

5 years warranty

General Specification

AC input voltage range	90~305VAC;127~431VDC
AC inrush current	Cold start, 50A at 230VAC
DC adjustment range	±10% rated output voltage
Over-voltage protection	64%~74% rated output voltage
Setup, rise, hold up time	500ms, 100ms, 12ms
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature	-40~+90°C
Safety standards	UL8750 approved; ENEC AS/NZS IEC BS EN/EN61347-1; BS EN/EN62384;
EMC standards	EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11; NOM-058-SCFI-2017 approved
Dimension (LxWxH)	105x63x30
Packing	24pcs / 10.5kg
