LPF-40-20

Name: LPF-40-20
Brand: MEAN WELL
Price: 25.15 USD
Availability: OutOfStock

$25.15

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$23.89

20+

$23.39

50+

$22.89

100+

$22.38

200+

$21.88

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

20V

Rated Current

Power Rating

40W

Waterproof

IP67

Dimensions

6.39 x 1.69 x 1.25 in

Weight

0.97 lbs

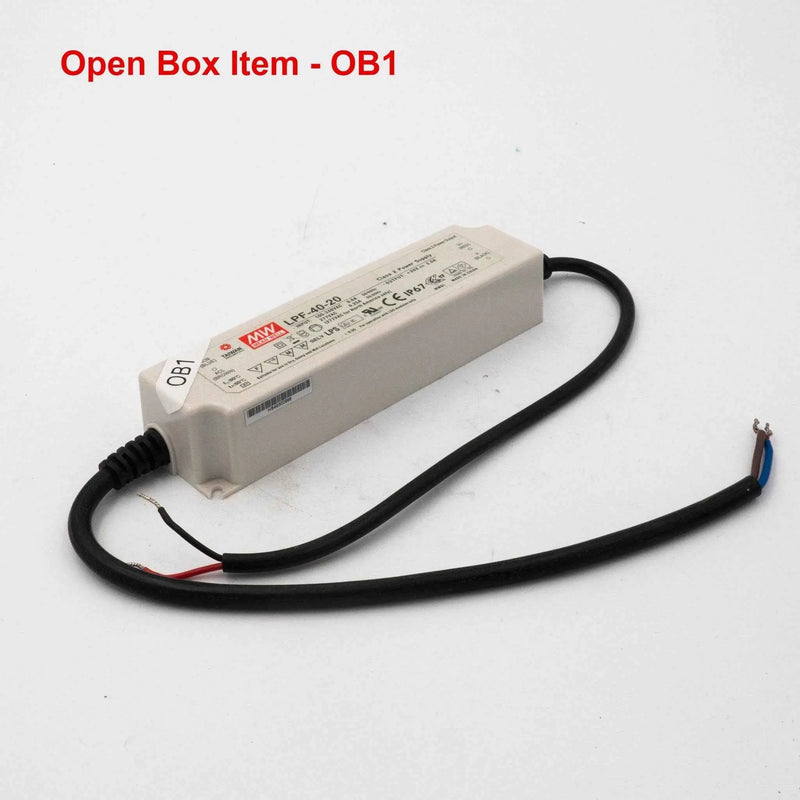

This is a tested open box model in perfect working condition, see the product name for description of the conditions

Features

Universal AC input (up to 305VAC) / Full range

Built-in active PFC function

Fully isolated plastic case

Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance) for D type

Fully encapsulated with IP67 level

Class 2 power unit / Pass LPS

Isolation class II, no F.G.

Protections: Short circuit / Over current / Over voltage / Over temperature

Suitable for LED lighting and moving sign applications

Suitable for dry, damp, and wet location

Cooling by free air convection

5 years warranty

General Specification

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 50A
Over current protection	95% ~108% constant current, auto-recovery
Over voltage protection	110%~150% rated output voltage
Withstand voltage	I/P - O/P: 3.75kVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, PSE J61347-1, J61347-2-13 approved for LPF-16(D)/25(D); UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved for LPF-40(D)/60(D)/90(D)
EMC standards	EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11
Connection Input	UL rated, SJTW 18AWGx2C (30cm)
Connection Output	UL rated, SVT 18AWGx2C (30cm)
Dimension (LxWxH)(mm)	162.5x 43x 32
