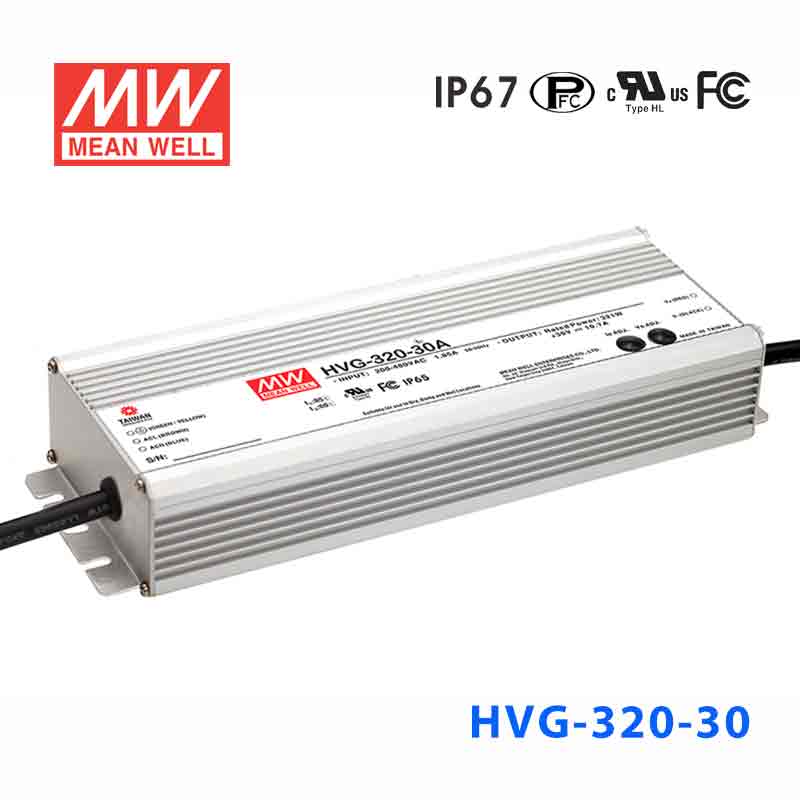

HVG-320-30B

Name: HVG-320-30B
Brand: MEAN WELL
Price: 126.92 USD
Availability: OutOfStock

$126.92

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$120.57

20+

$118.04

50+

$115.50

100+

$112.96

200+

$110.42

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

30V

Rated Current

10.7A

Power Rating

321W

Waterproof

IP67

Dimensions

10.31 x 3.54 x 1.72 in

Weight

4.40 lbs

Features

180~528VAC wide input range

Constant Voltage + Constant Current mode output

Metal housing with Class I design

Built-in active PFC

IP67 / IP65 rating for indoor or outdoor installations

Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming

Typical lifetime>50000 hours

5 years warranty

General Specification

AC input voltage range	180~528VAC; 254~747VDC
AC inrush current (max.)	COLD START 50A(twidth=850 s measured at 50% I μ peak) at 480VAC; Per NEMA 410
DC adjustment range	±10% rated output voltage
Current adjustment range	55%~100%
Over current protection	95%~108% constant current limiting, auto-recovery
Over-voltage protection	110%~140% rated output voltage
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-40~+85ºC (refer to output derating curve)
Safety standards	UL8750 (type”HL”), CSA C22.2 No. 250.13-12, EAC TP TC 004, IP65 or IP67 approved
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B
Connection Input	UL rated, STW 18AWGx3C (30cm)
Connection Output A&D-Type	SJTW 14AWGx2C (30cm)
Connection Output B-Type	SJTW 14AWGx2C (30cm) + UL2517 18AWGx2C (30cm)
Dimension (LxWxH) (mm)	262 x 90 x 43.8
