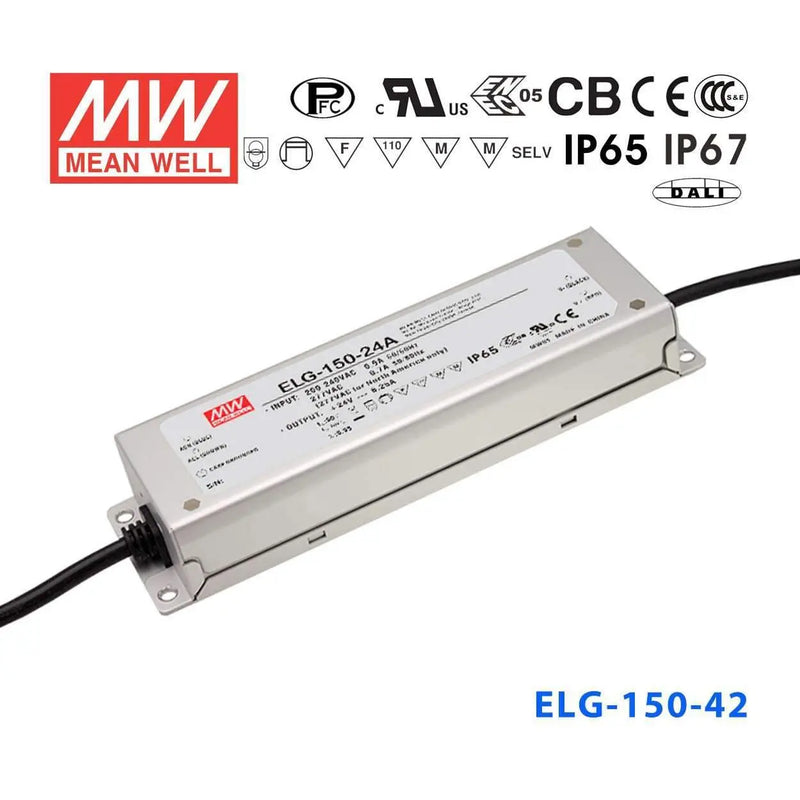

ELG-150-42AB MEAN WELL Power Supply | HTD Electronics
Manufacturer MEAN WELL

ELG-150-42AB

Availability: 16 can ship immediately
150 W42 V3.57 AIP65100Vā€“305V in

Request a Backorder

Submit your request and we will confirm lead time.

ELG-150-42AB SKU: 025-245

16 more units available on request (ready in 1ā€“2 business days). Contact customer service

Quantity
Quantity Prices (USD)
Quantity
Unit Price (USD)
1+
$49.62 USD
10+
$47.14 USD
20+
$46.15 USD
50+
$45.15 USD
100+
$44.16 USD
200+
$43.17 USD
All prices are displayed in USD. *Import tariff is included in the listed price. You pay exactly what you seeā€”no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
100V~305V
Output Voltage
42V
Rated Current
3.57A
Power Rating
150W
Waterproof
IP65
Dimensions & Weight
8.62 x 2.48 x 1.39 in2.09 lbs

Datasheet (PDF)

Open PDF
If the PDF doesnā€™t load here, click ā€œOpen PDFā€.

Features

100~305VAC wide input range
Built-in active PFC
Protections: Short circuit / Over voltage/Over temperature
No load power consumption <0.5W
High efficiency up to 92%
Suitable for LED lighting and street lighting applications
Cooling by free air convection
100% full load burn-in test
5 years warranty

General SpecificationĀ

AC input voltage range 100~305VAC;142~431VDC
AC inrush current Cold start, 65 at 230VAC
DC adjustment range Ā±10% rated output voltage
Over voltage protection 110%~140% rated output voltage
Setup, rise, hold up time 500ms
Withstand voltage I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature -40~+80Ā°C (refer to output derating curve)
Safety standards UL8750 approved
EMC standards EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, GB17743,GB17625.1
Dimension (LxWxH) 219x63x35.5
Packing 16pcs / 16.0kg

SKU: 025-245

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
šŸ“„ E6) COC-REACH (2026/01/28) šŸ“„ E9) CMRT (2025/04/25) šŸ“„ E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) šŸ“„ REACH Certificate (PDF) (2020/12/03) šŸ“„ ROHS Certificate (PDF) (2020/05/29) šŸ“„ E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
