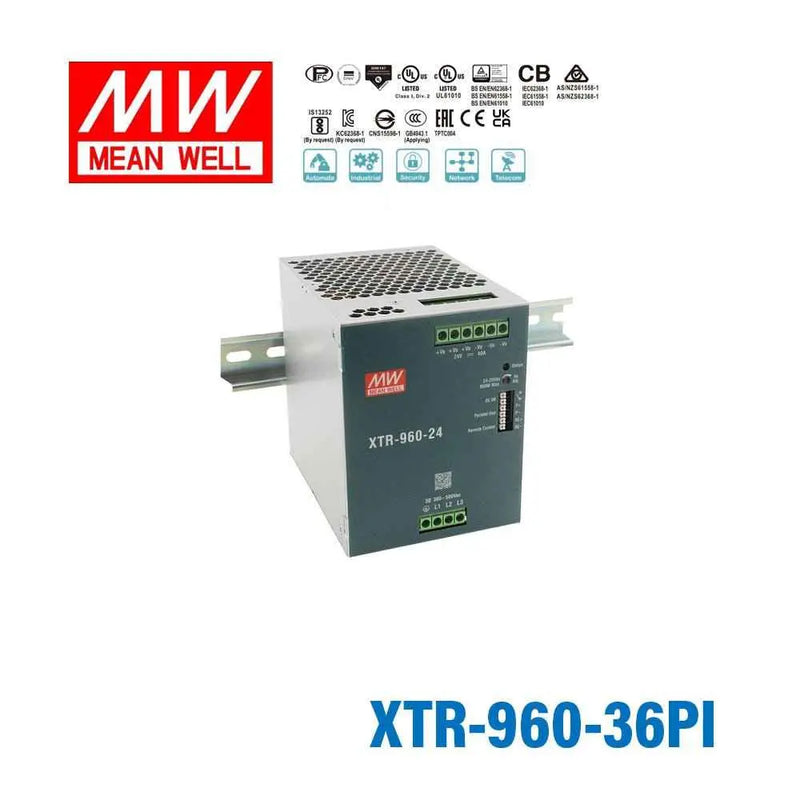

XTR-960-36PI

Name: XTR-960-36PI
Brand: MEAN WELL
Price: 228.1 USD
Availability: OutOfStock

$228.10

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$216.70

20+

$212.13

50+

$207.57

100+

$203.01

200+

$198.45

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

36V

Rated Current

26.66A

Power Rating

960W

Waterproof

Non-waterproof

Dimensions

5.19 x 3.77 x 4.92 in

Weight

3.96 lbs

XTR-960 Series

The XTR-960 series is a high-capacity 960W power supply, designed to deliver reliable power in challenging industrial settings. Its efficiency and advanced features make it ideal for large-scale applications requiring stable power and enhanced performance. The series supports parallel operation, ensuring scalability and flexibility in power distribution.

Key Features:

Three-Phase 320 ~ 600Vac wide range input (Dual phase operation possible)
Efficiency up to 96% with ultra low inrush current <10A
200% Peak Power capability
Current sharing up to 3840W for parallel use
Comprehensive protections: Short circuit / Overload / Over voltage / Over temperature
Fanless cooling design
Operating temperature range: -40~+85°C
Built-in DC OK relay contact
Conformal coating for moisture and dust protection
