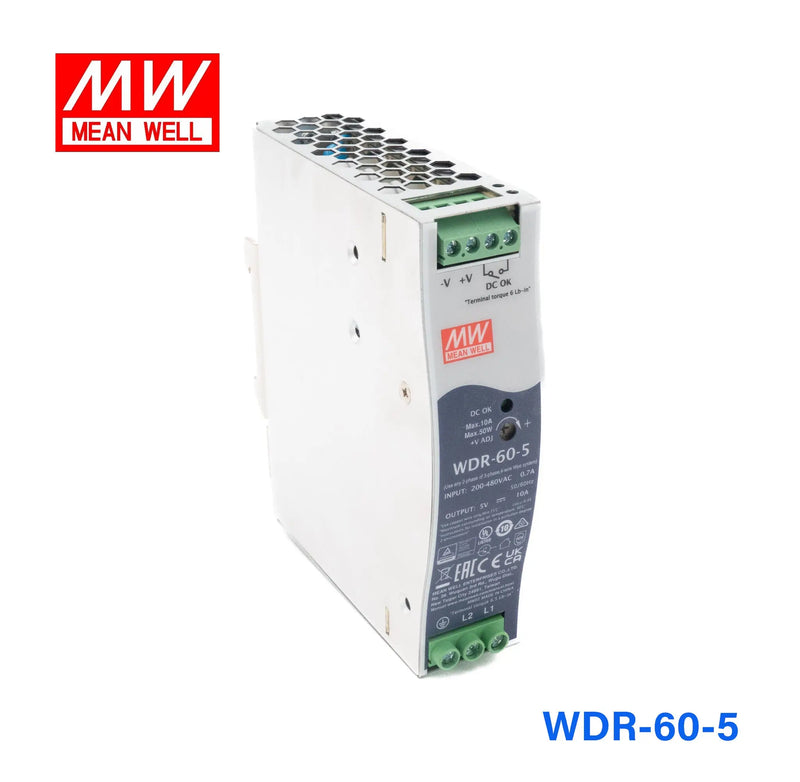

WDR-60-5

Name: WDR-60-5
Brand: MEAN WELL
Price: 63.75 USD
Availability: OutOfStock

$63.75

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$60.56

20+

$59.29

50+

$58.01

100+

$56.74

200+

$55.46

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

Rated Current

10A

Power Rating

50W

Waterproof

Non-waterproof

Dimensions

4.92 x 4.01 x 1.25 in

Weight

1.10 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Features

Single and two-phase wide input range 180~550VAC

Protections: Short circuit / Overload / Over voltage / Over temperature

Cooling by free air convection

The built-in constant current limiting circuit

Can be installed on DIN rail TS-35 / 7.5 or 15

4.7KVac I/O high isolation(Reinforced isolation)

Overvoltage category III

Built-in DC OK relay contact

DC output voltage adjustable(+20%)

3 years warranty

General Specification

AC input voltage range	180~550VAC(single and two-phase); 254~780VDC
AC input current	0.4A / 400VAC, 0.7A / 230VAC
AC inrush current (max.)	Cold start, 50A at 400VAC
DC adjustment range	5V: 5-6V, 12V: 12~15V, 24V: 24~29V, 48V: 48~57V
Overload protection	105%~130% rated output power, constant current limiting, auto-recovery
Over-voltage protection Range	6.2~7.2V for 5V model, 16~18V for 12V model, 31~37V for 24V model, 58~60.5V for 48V model
Over-voltage protection Type	Shut down o/p voltage, auto-recovery
Setup, rise, hold up time	2000ms, 70ms, 10ms at full load and 230VAC; 1000ms, 70ms, 20ms at full load and 400VAC
Over temp. protection	Shut down output voltage, recovers automatically after temperature goes down
Withstand voltage	I/P-O/P:4.7VAC, I/P-FG:2.5kVAC, O/P-FG:0.5kVAC, O/P-DC OK:0.5kVAC
Working temperature	-40~+85°C
DC OK signal	Relay Contact
Leakage current	<2mA at 530VAC
Vibration	10~500Hz, 2G 10 minutes / 1 cycle, period of 60 minutes each along X, Y, and Z axes
Safety standards	UL61010 approved; AS/NZS 62368.1
EMC standards	EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2, EN61204-3
Connection	I/P: 3 poles, O/P: 4 poles screw DIN terminal
Dimension (LxWxH)	32x125.2x102
Packing	28pcs / 13.6kg
