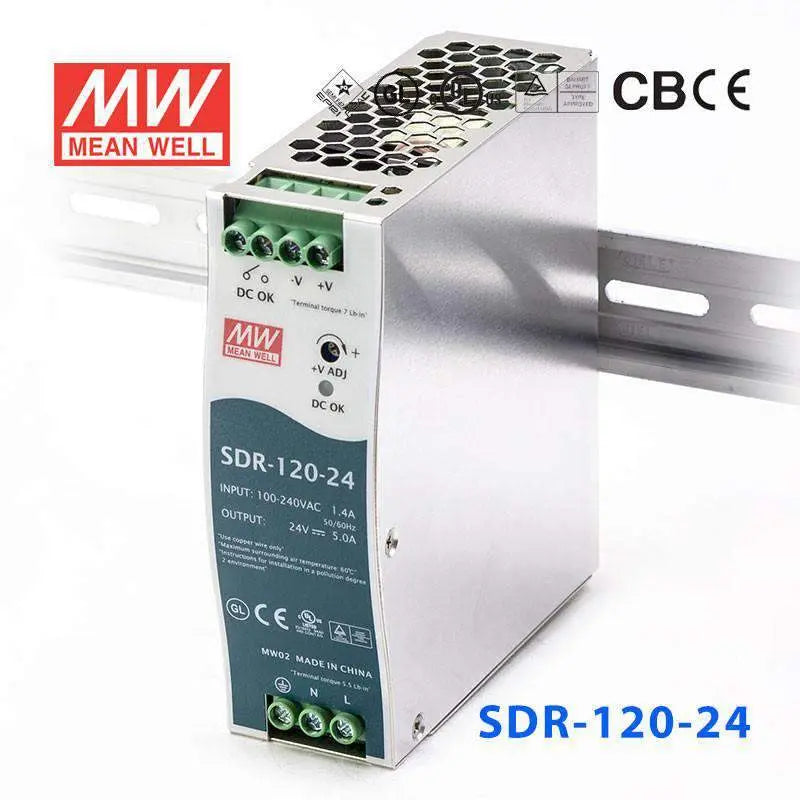

SDR-120-24

Name: SDR-120-24
Brand: MEAN WELL
SKU: 025-501
Price: 49.85 USD
Availability: InStock

$49.85

Availability: ✔ 20 can ship immediately

ℹ️ Lead time for quantities greater than shown, contact us

Place your order within --:--:-- to ensure shipment Today

Quantity Prices

Quantity

Unit Price

10+

$47.36

20+

$46.36

50+

$45.36

100+

$44.37

200+

$43.37

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

24V

Rated Current

Power Rating

120W

Waterproof

Non-waterproof

Dimensions

4.92 x 4.46 x 1.57 in

Weight

1.47 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Features

High efficiency up to 94%

Universal AC input / Full range

Built-in active PFC function

Built-in DC OK relay contact

Protections: Short circuit / Overload / Over voltage / Over temperature

Cooling by free air convection

Can be installed on DIN rail TS-35 / 7.5 or 15

UL508(industrial control equipment) approved

EN61000-6-2(EN50082-2) industrial immunity level

150% peak load capability

Comply with, Comply with SEMI F47

3 years warranty

General Specification

AC input voltage range	88~264VAC; 124~370VDC
AC inrush current (max.)	Cold start, 70A at 230VAC
DC adjustment range	12V: 12~14V (only for SDR-75/120), 24V: 24~28V, 48V: 48~55V
Overload protection	Normally works within 110%~150% rated output power for 3 seconds and then shut down output voltage with auto-recovery (re-power on to recover for SDR-75)
Overload protection	>150% rated power or short circuit, constant current limiting with auto-recovery within 2 seconds and may cause to shut down if over 2 seconds
Over voltage protection Range	14~17V for 12V model
Over voltage protection Type	Shut down o/p voltage, re-power on to recover
Over temp. protection	Recovers automatically after temperature goes down
Withstand voltage	I/P-O/P:3kVAC, I/P-FG:1.5kVAC, O/P-FG:0.5kVAC, O/P-DC OK:0.5kVAC
Working temperature	-25~+70°C (refer to output derating curve)
Safety standards	UL508, TUV EN60950-1, GL approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), EN61204-3; SEMI, GL
Connection	I/P: 3 poles, O/P: 4 poles screw DIN terminal
Dimension (WxHxD)(mm)	40x125.2x113.5
