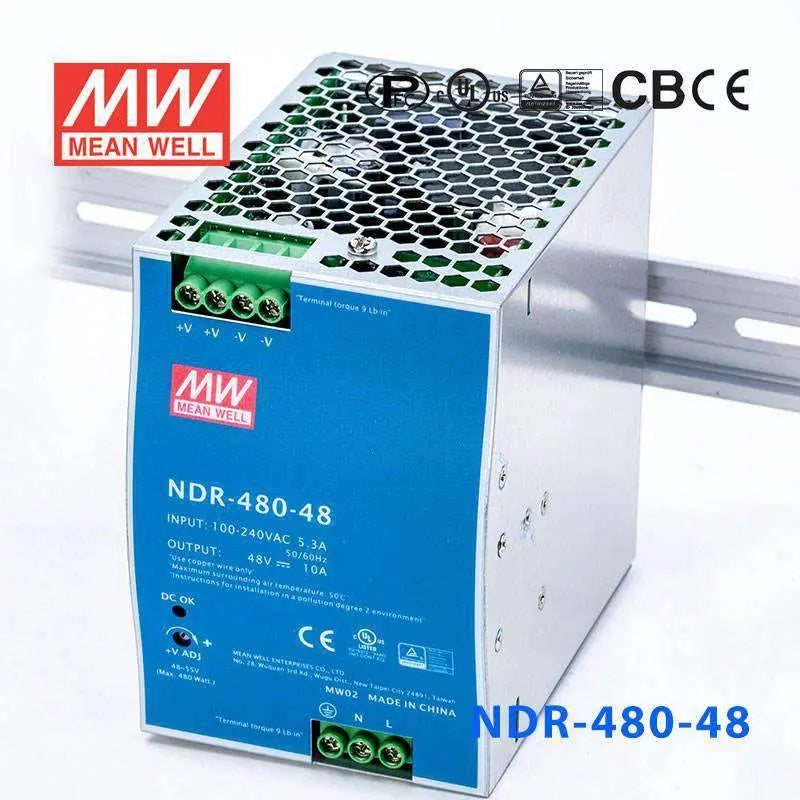

NDR-480-48

Name: NDR-480-48
Brand: MEAN WELL
SKU: 025-215
Price: 103.05 USD
Availability: InStock

$103.05

Availability: ✔ 16 can ship immediately

ℹ️ Lead time for quantities greater than shown, contact us

Place your order within --:--:-- to ensure shipment Today

Quantity Prices

Quantity

Unit Price

10+

$97.90

20+

$95.84

50+

$93.78

100+

$91.71

200+

$89.65

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

48V

Rated Current

10A

Power Rating

480W

Waterproof

Non-waterproof

Dimensions

4.92 x 4.92 x 3.36 in

Weight

3.30 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Features

Universal AC input / Full range

Protections: Short circuit / Overload / Over voltage / Over temperature

Cooling by free air convection

Can be installed on DIN rail TS-35 / 7.5 or 15

UL508 (industrial control equipment) approved

EN61000-6-2 (EN50082-2) industrial immunity level

100% full load burn-in test

Low cost

3 years warranty

General Specification

AC input voltage range	90~264VAC; 127~370VDC
AC inrush current (max.)	Cold start, 35A at 230VAC
DC adjustment range	12V: 12~14V, 24V: 24~28V, 48V: 48~55V
Overload protection	105%~130% Constant current limiting, auto-recovery
Over voltage protection	14V: 14~17V, 24V: 29~33V, 48V: 56~65V
Over temperature protection	Shut down o/p voltage, re-power on to recover
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-20~+70°C(refer to output derating curve)
Safety standards	UL508, TUV EN60950-1 approved
EMC standards	EN55022(CISPR22), EN61204-3 Class B,EN61000-3-2,-3 , EN61000-4-2,3,4,5,6,8,11,EN55024, EN61000-6-2(EN50082-2), EN61204-3
Connection (screw DIN terminal)	I/P: 3 poles, O/P: 4 poles
Dimension (LxWxH) (mm)	85.5x 125.2x 128.5mm
Packing	8pcs / 13kg
