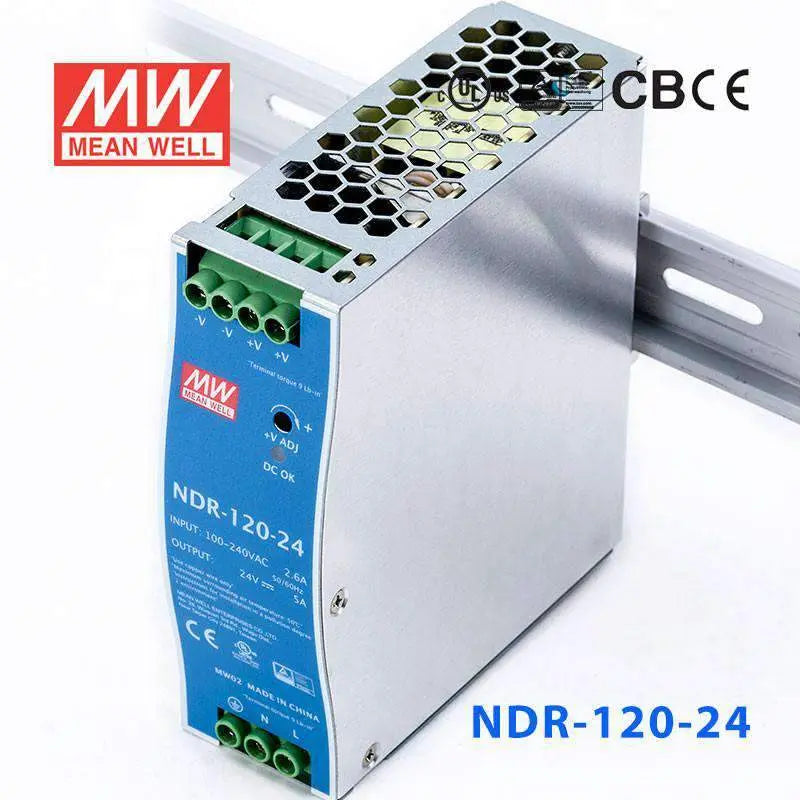

MEAN WELL NDR-120-24 DIN rail power supply
Manufacturer MEAN WELL

NDR-120-24

Availability: 500 can ship immediately
120 W24 V5 A90V–264V in

Request a Backorder

Submit your request and we will confirm lead time.

NDR-120-24 SKU: 70377

160 more units available on request (ready in 1–2 business days). Contact customer service

Quantity
Quantity Prices (USD)
Quantity
Unit Price (USD)
1+
$29.65 USD
10+
$28.17 USD
20+
$27.57 USD
50+
$26.98 USD
100+
$26.39 USD
200+
$25.80 USD
All prices are displayed in USD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
90V~264V
Output Voltage
24V
Rated Current
5A
Power Rating
120W
Waterproof
Non-waterproof
Dimensions & Weight
4.92 x 4.46 x 1.57 in1.32 lbs

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

Features

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Can be installed on DIN rail TS35 / 7.5 or 15
UL508 (industrial control equipment) listed
EN61000-6-2 (EN50082-2) industrial immunity level
100% full load burn-in test
Low cost
3 years warranty for NDR series
2 years warranty for EDR series

General Specification

AC input voltage range 90~264VAC; 127~370VDC
AC inrush current (max.) Cold start, 35A at 230VAC
DC adjustment range 12V: 12~14V, 24V: 24~28V, 48V: 48~55V
Current adjustment range 10%~100% rated output current adjustable by 1~10Vdc, PWM signal or resistance
Overload protection 105%~130% Constant current limiting, auto-recovery
Over voltage protection 14V: 14~17V, 24V: 29~33V, 48V: 56~65V
Over temperature protection Shut down o/p voltage, re-power on to recover
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -20~+70!aC (refer to output derating curve
Safety standards UL60950-1, TUV EN60950-1 approved
EMC standards EN55022 class B, EN61000-3-2,3,
EN61000-4-2,3,4,5,6,8,11,
EN61000-6-2(EN50082-2), EN61204-3
Connection (screw DIN terminal) I/P: 3 poles, O/P: 4 poles
Dimension (LxWxH) (mm) 40x 125.2x 113.5
SKU: 70377

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
