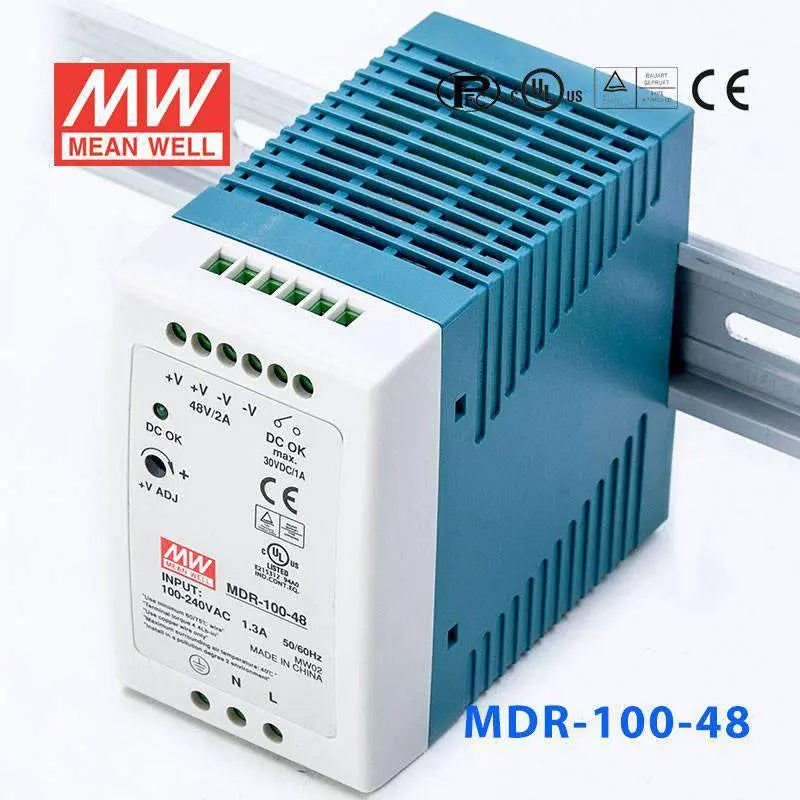

MDR-100-48

Name: MDR-100-48
Brand: MEAN WELL
Price: 37.37 USD
Availability: OutOfStock

$37.37

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$35.50

20+

$34.75

50+

$34.01

100+

$33.26

200+

$32.51

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

48V

Rated Current

Power Rating

96W

Waterproof

Non-waterproof

Dimensions

3.93 x 3.54 x 2.16 in

Weight

0.92 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Features

Universal AC input / Full range

Installed on DIN rail TS35 / 7.5 or 15

Protections: Short circuit / Overload / Over voltage

No load power consumption <1W

LED indicator for power on

DC OK relay contact

Cooling by free air convection

100% full load burn-in test

Built-in active PFC and over temp. protection

3 years warranty

General Specification

AC input voltage range	85~264VAC; 120~370VDC
AC inrush current	Cold start, 30A at 115VAC, 60A at 230VAC
DC adjustment range	0~+20% rated output voltage
Overload protection	105%~150% constant current limiting, auto-recovery
Over voltage protection	125%~150% rated output voltage
Setup, rise, hold up time	3000ms, 50ms, 50ms
Withstand voltage	I/P-O/P:3kVAC, I/P-FG:1.5kVAC, 1minute
Working temperature	-10~+60°C
DC OK signal	Relay contact
Safety standards	UL508, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61204-3, EN61000-6-2 heavy industry level
Connection	IP: 3 poles, O/P: 6 poles screw DIN terminal
Dimension (LxWxH)	55x90x100
Packing	30pcs / 13.6kg
