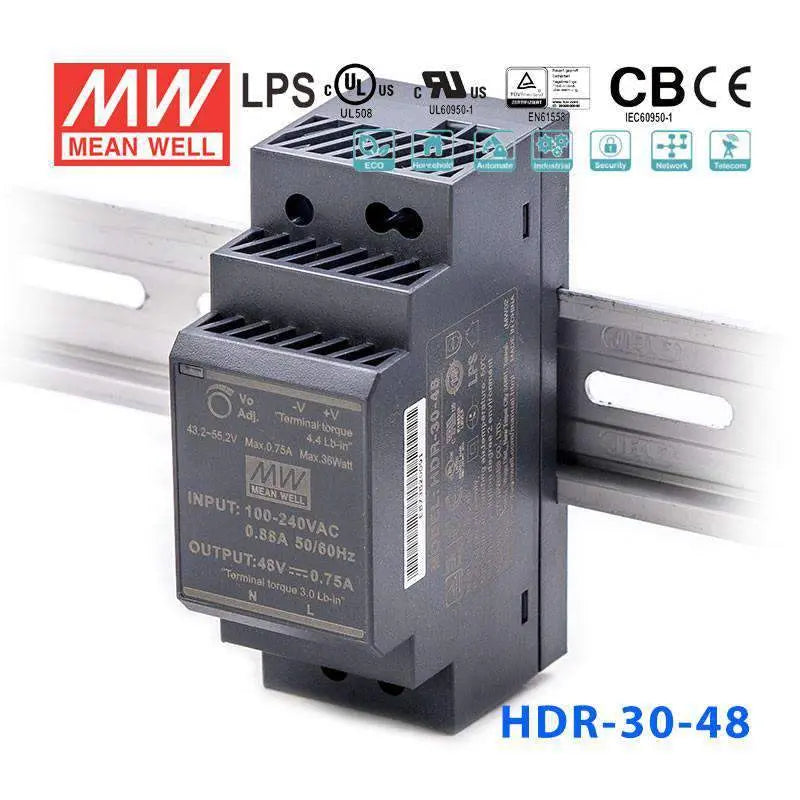

HDR-30-48

Name: HDR-30-48
Brand: MEAN WELL
Price: 16.2 USD
Availability: OutOfStock

$16.20

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$15.39

20+

$15.07

50+

$14.74

100+

$14.42

200+

$14.09

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

48V

Rated Current

0.75A

Power Rating

36W

Waterproof

Non-waterproof

Dimensions

3.54 x 2.14 x 1.37 in

Weight

0.28 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Features

Universal AC input / Full range

Installed on DIN rail TS35 / 7.5 or 15

Protections: Short circuit / Overload / Over voltage

No load power consumption <0.3W

Ultra slim design with 35mm(2SU) width

Isolation class II

Cooling by free air convection

LED indicator for power on

3 years warranty

General Specification

AC input voltage range	85~264VAC; 120~370VDC
AC inrush current	Cold start 25A at 115VAC, 45A at 230VAC
DC adjustment range	±10% rated output voltage
Overload protection	110%~145% constant current limiting, auto-recovery
Over voltage protection	115%~135% rated output voltage
Setup, rise, hold up time	500ms, 50ms, 30ms
Withstand voltage	I/P-O/P:4kVAC
Working temperature	-30~+70°C (refer to output derating curve)
Vibration	10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes
Safety standards	UL508, UL,IEC 62368-1, EN61588-1,2-16
EMC standards	EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection	I/P: 2 poles, O/P: 2 poles screw DIN terminal
Dimension (LxWxH)	35x90x54.5
Packing	96pcs / 12.5kg
