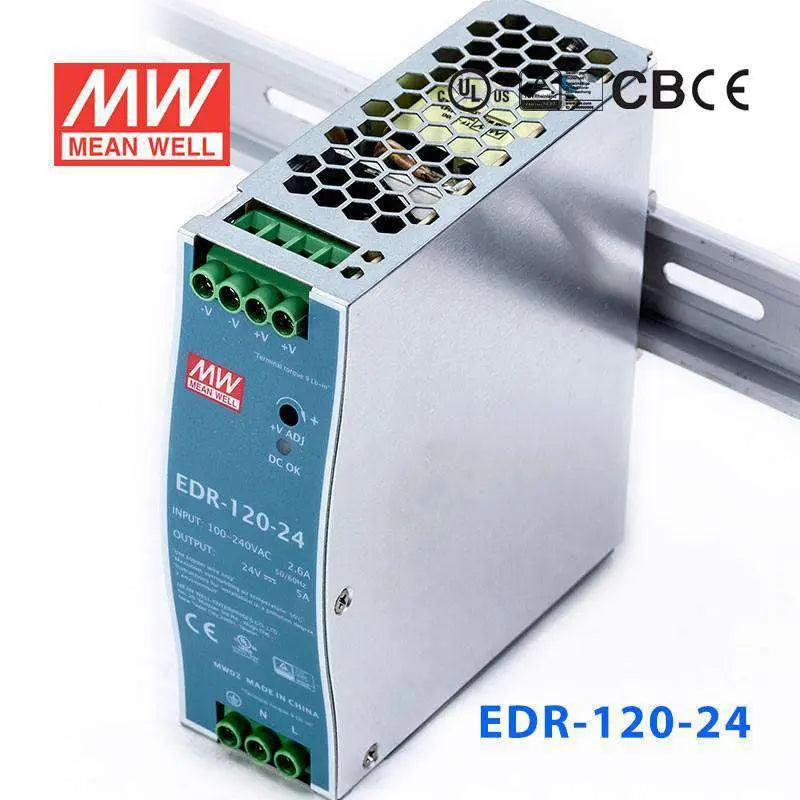

MEAN WELL EDR-120-24 DIN rail power supply
Manufacturer MEAN WELL

EDR-120-24

Availability: 206 can ship immediately
120 W24 V5 A90Vā€“264V in

Request a Backorder

Submit your request and we will confirm lead time.

EDR-120-24 SKU: 70370

180 more units available on request (ready in 1ā€“2 business days). Contact customer service

Quantity
Quantity Prices (USD)
Quantity
Unit Price (USD)
1+
$25.80 USD
10+
$24.51 USD
20+
$23.99 USD
50+
$23.48 USD
100+
$22.96 USD
200+
$22.45 USD
All prices are displayed in USD. *Import tariff is included in the listed price. You pay exactly what you seeā€”no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
90V~264V
Output Voltage
24V
Rated Current
5A
Power Rating
120W
Waterproof
Non-waterproof
Dimensions & Weight
4.92 x 4.46 x 1.57 in1.32 lbs

Datasheet (PDF)

Open PDF
If the PDF doesnā€™t load here, click ā€œOpen PDFā€.

Features

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Can be installed on DIN rail TS35 / 7.5 or 15
UL508 (industrial control equipment) listed
EN61000-6-2 (EN50082-2) industrial immunity level
100% full load burn-in test
Low cost
3 years warranty for NDR series
2 years warranty for EDR series

General SpecificationĀ

AC input voltage range 90~264VAC; 127~370VDC
AC inrush current (max.) Cold start, 35A at 230VAC
DC adjustment range 12V: 12~14V, 24V: 24~28V, 48V: 48~55V
Current adjustment range 10%~100% rated output current adjustable by 1~10Vdc, PWM signal or resistance
Overload protection 105%~130% Constant current limiting, auto-recovery
Over voltage protection 14V: 14~17V, 24V: 29~33V, 48V: 56~65V Shut down o/p voltage, re-power on to recover
Over temperature protection Shut down o/p voltage, re-power on to recover
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -20~+60!aC (refer to output derating curve
Safety standards UL60950-1, TUV EN60950-1 approved
EMC standards EN55022 classA, EN61000-3-2(125W for EDR-150),3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2(EN50082-2)
Connection (screw DIN terminal) I/P: 3 poles, O/P: 4 poles
Dimension (LxWxH) (mm) 40x 125.2x 113.5
SKU: 70370

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
šŸ“„ E6) COC-REACH (2026/01/28) šŸ“„ E9) CMRT (2025/04/25) šŸ“„ E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) šŸ“„ REACH Certificate (PDF) (2020/12/03) šŸ“„ ROHS Certificate (PDF) (2020/05/29) šŸ“„ E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
