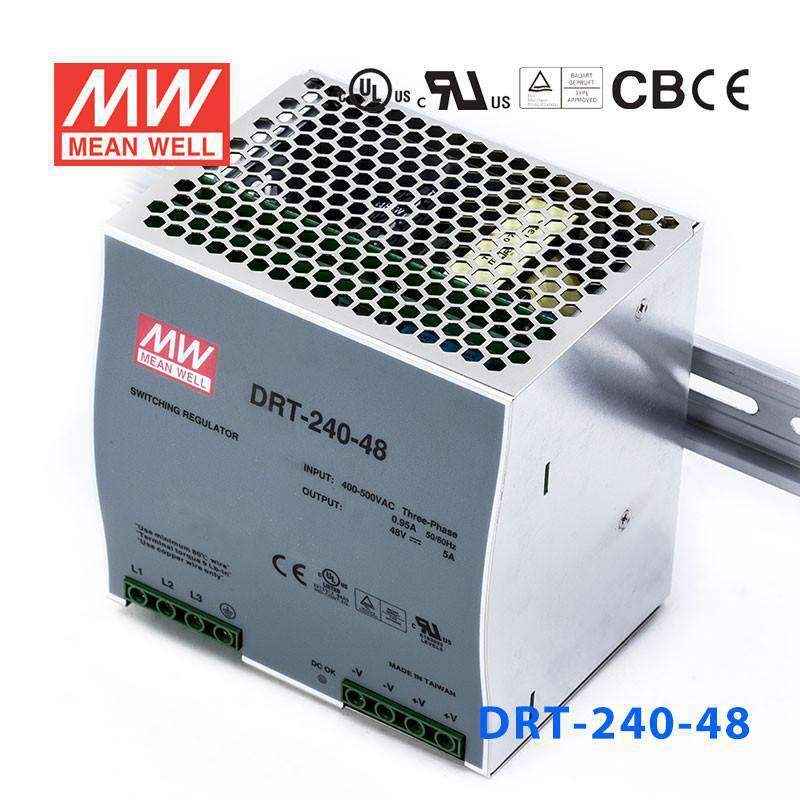

DRT-240-48

DRT-240-48

$55.71
Availability: Out of stock
ℹ️ Lead time for quantities greater than shown, contact us
Quantity Prices
Quantity
Unit Price
10+
$52.92
20+
$51.81
50+
$50.70
100+
$49.58
200+
$48.47
*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Output Voltage
48V
Rated Current
5A
Power Rating
240W
Waterproof
Non-waterproof
Dimensions
4.94 x 4.92 x 3.93 in
Weight
2.86 lbs
"

MEAN WELL DRT-240 series DIN Rail Power Supply are 240W Single output Industrial DIN Rail Power Supply with high efficiency, long life, and high reliability.

Features

  • Three-Phase AC 340 ~ 550V wide range input
  • High efficiency 89% and low dissipation
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Built-in constant current limiting circuit
  • Can be installed on DIN rail TS-35/7.5 or 15
  • UL 508(industrial control equipment)approved
  • EN61000-6-2(EN50082-2) industrial immunity level
  • 100% full load burn-in test
  • Fixed switching frequency at 70KHz
  • 3 years warranty
"
Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
