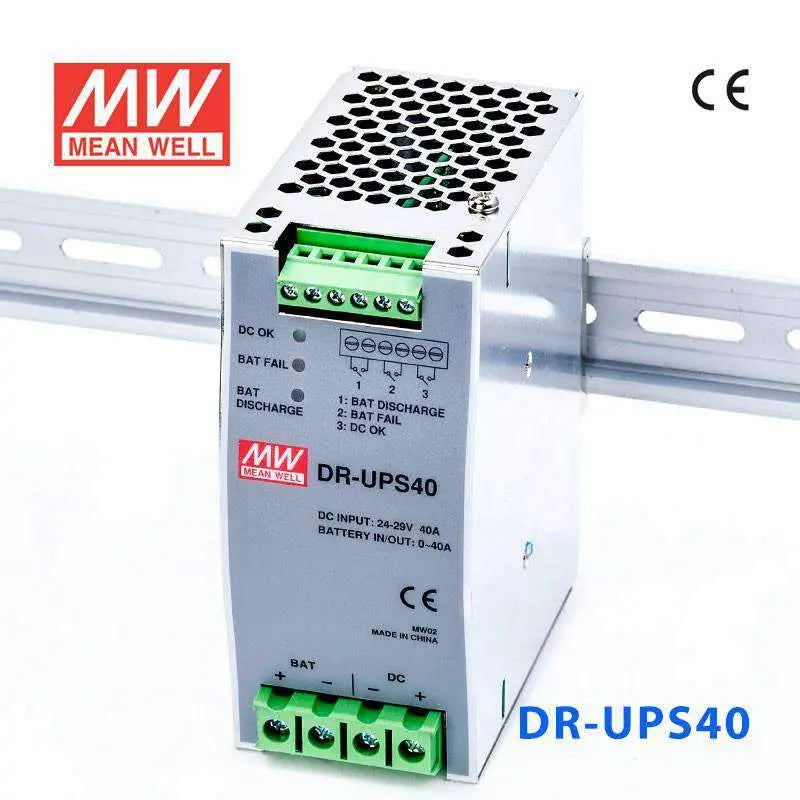

DR-UPS40

Name: DR-UPS40
Brand: MEAN WELL
Price: 32.85 USD
Availability: OutOfStock

$32.85

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$31.21

20+

$30.55

50+

$29.89

100+

$29.24

200+

$28.58

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

24V

Rated Current

40A

Power Rating

960W

Waterproof

Non-waterproof

Dimensions

4.92 x 3.93 x 2.18 in

Weight

1.21 lbs

Features

Battery controller for DIN rail UPS system

Parallel connected to DC BUS

Suitable for 24V system up to 40A

Installed on DIN Rail TS35 / 7.5 or 15

Built-in battery test function

Battery polarity protection

Relay contact signal output and LED indicator for DC BUS OK, Battery Fail, and Battery Discharge

Cooling by free air convection

3 years warranty

General Specification

DC input / DC bus	24~29V, 40A max.
Battery input voltage	21~29V
Battery input Current	0~40A
Charge current (typ.)	2A
External battery (typ.)	24V, 4AH / 7AH / 12AH
DC bus ok	Relay status : Short when DC voltage between 21~29V(±3%), relay contacts LED(Green) : DC bus OK : light; DC bus fail : dark
Battery fail	Relay status : Short when battery failure is observed through the battery test function, relay contacts LED(Red) : Battery over-discharge warning or battery broken: light; Battery OK: dark
Battery discharge	Relay status : Short when battery in discharge condition, relay contacts LED(Yellow) : Battery discharging: light; Battery is not discharging or discharging current <2A: dark
Working temperature	-20~+70°C
EMC standards	EN55022 class B, EN61000-4-2,3,4,5,6,8,11
Connection	I/P: 2 poles, O/P: 2 poles screw DIN terminal, Single output: 6 poles
Dimension (LxWxH)	55.5x 125.2x 100 mm
CASE	923D
