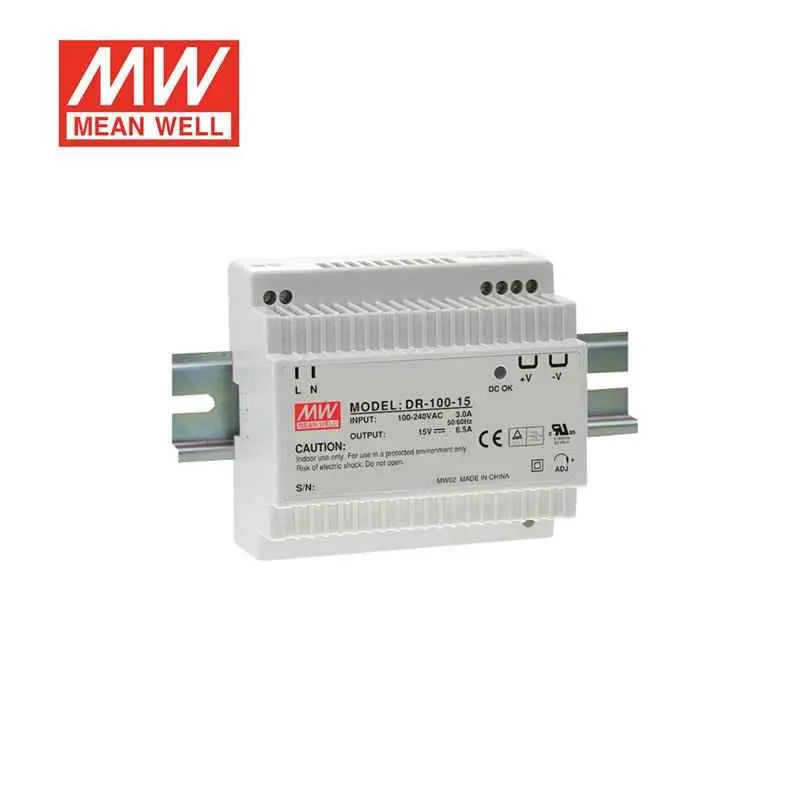

DR-100-15

Name: DR-100-15
Brand: MEAN WELL
Price: 20.87 USD
Availability: OutOfStock

$20.87

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$19.83

20+

$19.41

50+

$18.99

100+

$18.57

200+

$18.16

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

15V

Rated Current

6.5A

Power Rating

97.5W

Waterproof

Non-waterproof

Dimensions

3.93 x 3.66 x 2.20 in

Weight

0.77 lbs

Features

Universal AC input / Full range

Protections: Short circuit / Overload / Over voltage

Cooling by free air convection

Can be installed on DIN rail TS-35/7.5 or 15

UL 508 (industrial control equipment) approved

Isolation class II

LED indicator for power on

100% full load burn-in test

3 years warranty

General Specification

Line regulation (max.)	± 1.0%
Load regulation (max.)	± 1.0%
Overload protection Range	105 ~ 160% rated output power
Overload protection Type	Constant current limiting, recovers automatically after fault condition is removed
Over-voltage protection	Shut down o/p voltage, re-power on to recover
Withstand voltage	I/P-O/P:3KVAC \| I/P-FG:1.5KVAC \| O/P-FG:0.5KVAC
Isolation resistance	I/P-O/P:100M Ohms / 500VDC / 25 / 70% RH
Working temperature	-20 ~ +60 ℃ (Refer to "Derating Curve")
Safety standards	UL60950-1 approved, Design refer to EN50178
Dimension (LxWxH) (mm)	789356mm (LWH)
Packing	0.3Kg; 48pcs/15.4Kg/1.12CUFT
