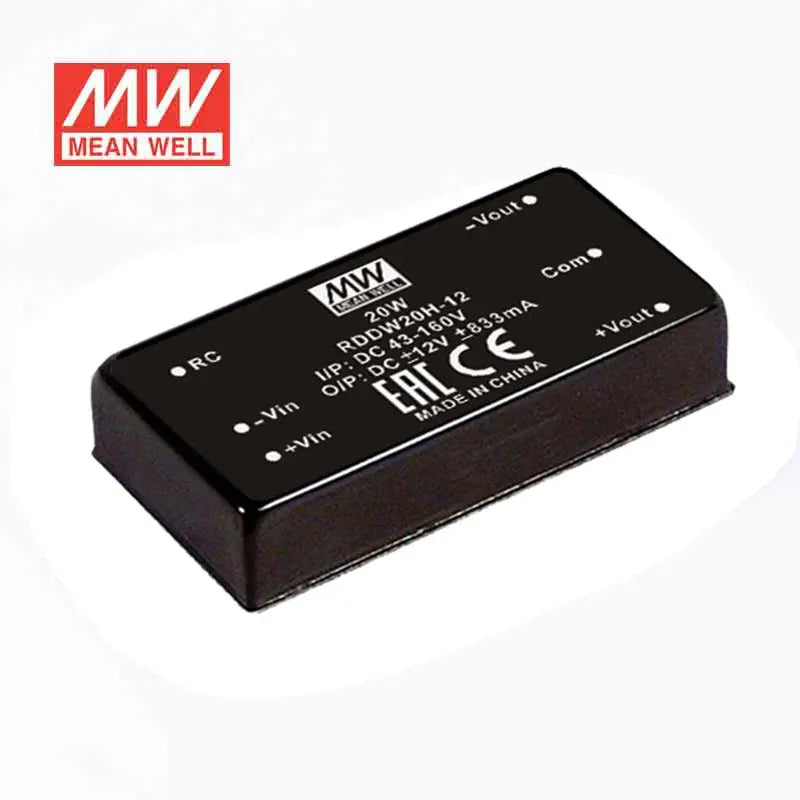

RDDW20G-15

Name: RDDW20G-15
Brand: MEAN WELL
Price: 57.58 USD
Availability: OutOfStock

$57.58

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$54.70

20+

$53.55

50+

$52.40

100+

$51.25

200+

$50.09

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

15V

Rated Current

0.66A

Power Rating

20W

Waterproof

Non-waterproof

Dimensions

2 x 1 x 0.40 in

Weight

0.07 lbs

Features

Compliance with EN50155 railway standard

DIP 2" x 1" package with standard pinout

4:1 wide input range

Wide operating temperature range -40~+85°C

No minimum load required

Fully encapsulated

Protections: Short circuit(Continuous)/Overload/Over voltage/Input under voltage

1.5KVDC, 3KVDC I/O isolation by models

Remote ON/OFF control

3 years warranty

General Specification

Voltage Accuracy	±1.5%
Overload Protection	110~160% rated output power
Efficiency	90%
Short circuit protection	Continuous, automatic recovery
Working temperature	-40°C to +85°C
EMC	Compliance to EN55032 class A, EN61000-4-2,3,4,5,6
Temp. Coefficient	0.03% / ℃ (0 ~ 71℃)
Dimension (LxWxH) (mm)	50.825.410.2mm
Potting material	Non-conductive black plastic
