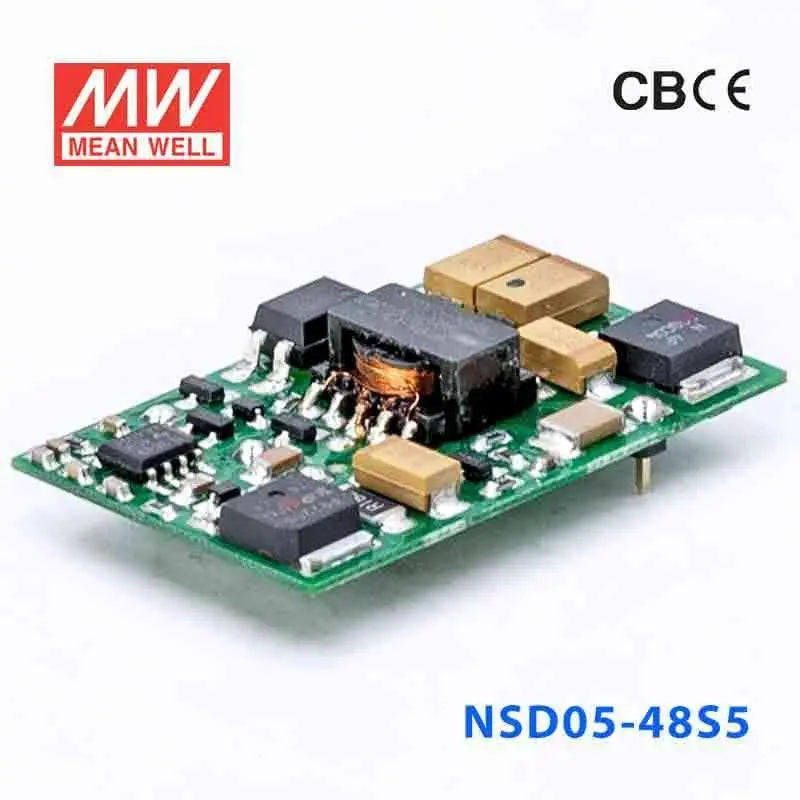

NSD05-48S5

Name: NSD05-48S5
Brand: MEAN WELL
Price: 8.44 USD
Availability: OutOfStock

$8.44

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$8.02

20+

$7.85

50+

$7.68

100+

$7.51

200+

$7.34

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

Rated Current

Power Rating

Waterproof

Non-waterproof

Dimensions

1.59 x 1 x 0.32 in

Weight

0.01 lbs

Features

4: 1 wide input range

1000VDC I / O isolation

Built-in EMI filter

Protection: Short circuit / Overload / Over voltage

Built-in remote ON / OFF control

Cooling by free air convection

100% full load burn-in test

Low cost, high reliability

2 years warranty

General Specification

Voltage set point accuracy	± 2.0% (max.)
Line regulation	± 1.0% (max.)
Load regulation	± 1 ~ ± 2% (max.) @ 10 ~ 100% load
Overload protection	Over 105% power limiting, auto-recovery
Efficiency	85% (typical)
I / O isolation voltage	1000VDC (min.)
I / O isolation resistance	100MQ(min.) @500VDC
Working temperature	-25 ~ + 70°C of case temp. (Refer to output derating curve)
Storage temperature	-40 to + 85°C
Short circuit protection	Continuous, auto-recovery
Temp. Coefficient	± 0.03% / °C
EMC	EN55022 class B, EN61000-4-2,3,4,5,6,8
Safety standards	IEC60950-1 CB approved by TUV
Dimension (LxWxH) (mm)	1.6" x 1" x 0.327"
Packing	0.007 kg; 700 pcs / 5.9 kg / 0.97CUFT
