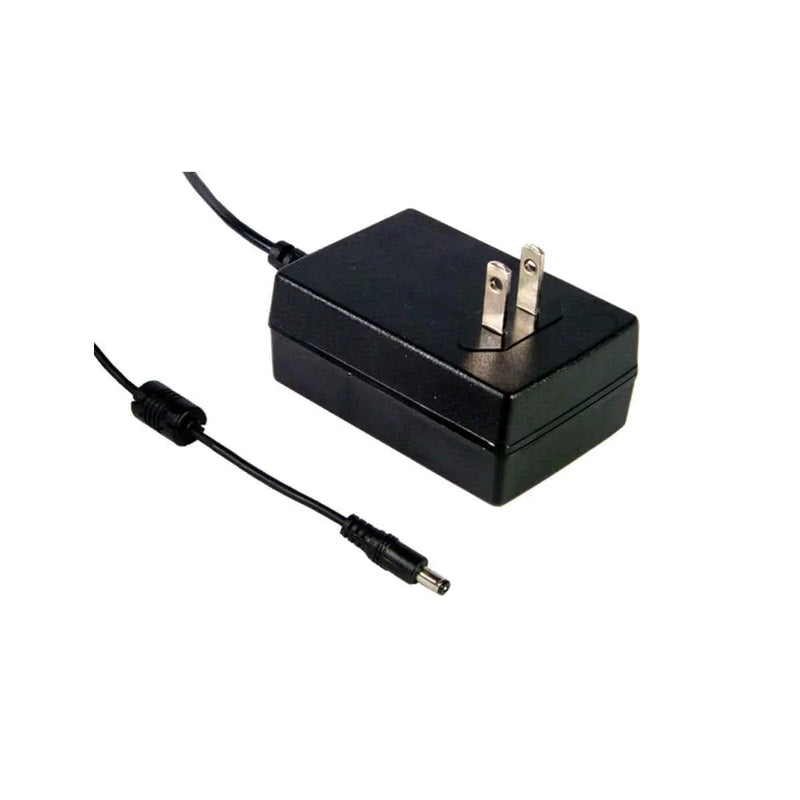

GST18U48-P1J
Manufacturer MEAN WELL

GST18U48-P1J

Availability: Out of stock
18 W48 V0.37 A85V–264V in

Request a Backorder

Submit your request and we will confirm lead time.

GST18U48-P1J
Quantity Prices (USD)
Quantity
Unit Price (USD)
1+
$12.21 USD
10+
$11.60 USD
20+
$11.36 USD
50+
$11.11 USD
100+
$10.87 USD
200+
$10.62 USD
All prices are displayed in USD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
85V~264V
Output Voltage
48V
Rated Current
0.37A
Power Rating
18W
Waterproof
Non-waterproof
Dimensions & Weight
3.11 x 2.12 x 1.29 in0.43 lbs

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

Features

Universal AC input / Full range
No load power consumption < 0.075W
Energy Efficiency Level VI
Meet EISA 2007 (Energy Independence and Security Act)
NRCan compliant for A/U type
2 pole USA / EURO plug or IEC320-C14/C8
Class I power (with earth pin) only
Protections: Short circuit / Overload / Over voltage
Fully enclosed plastic case
LED indicator for power on
Pass LPS
Approvals: UL / CUL / TUV / BSMI / CCC / PSE / CB / FCC / CE / RCM
3 years warranty


General Specification

AC input voltage range 85~264VAC
AC inrush current (max.) Cold start, 65A at 230VAC
Overload protection 110%~150% rated output voltage, hiccup mode, auto-recovery
Over voltage protection 110%~140% rated output voltage, clamp by zener diode
Withstand voltage I/P-O/P: 4242VDC, I/P-FG:2121VDC 1 minute
Working temperature -30~+70°C (refer to output derating curve )
Safety standards UL60950-1, CSA C22.2, TUV EN60950-1, BSMI CNS14336, PSE J60950-1, CCC GB4943 approved
EMC standards EN55022 class B, EN61000-3-2,3, FCC part 15 /CISPR22 class B, CNS13438 class B,GB9254,GB17625.1
Length of output cable 120cm of 16AWG for 5~12V ; 180cm of UL1185, 18AWG for 15~48V
Dimension (LxWxH) 93x 54x 36 mm
Standard DC plug P1J: 2.1ID x 5.5OD x 11L, tuning fork type

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
