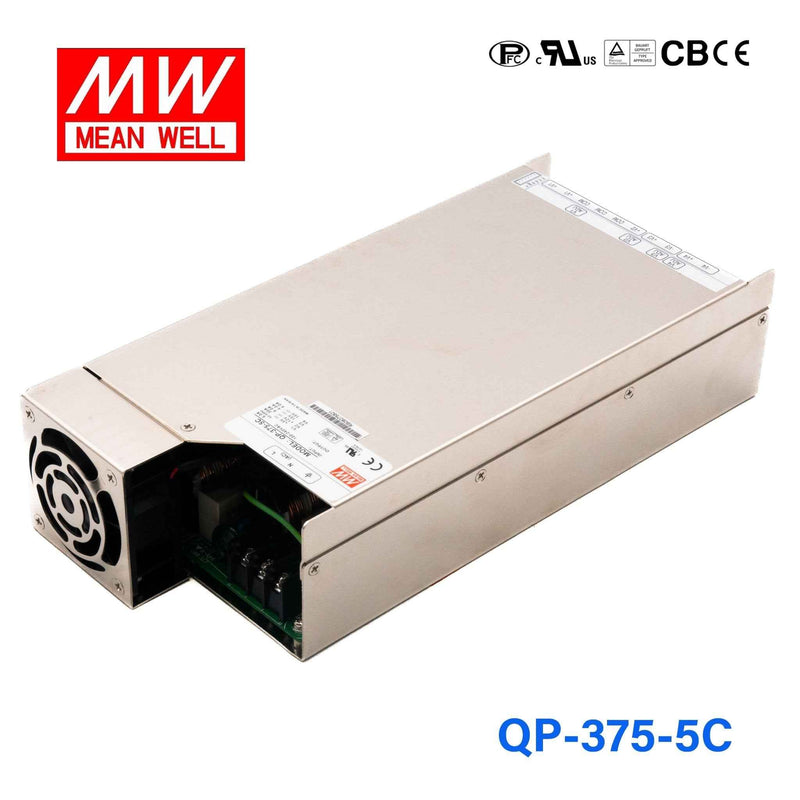

QP-375-5C

Name: QP-375-5C
Brand: MEAN WELL
Price: 112.58 USD
Availability: OutOfStock

$112.58

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$106.95

20+

$104.70

50+

$102.45

100+

$100.20

200+

$97.94

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

Rated Current

30A

Power Rating

378W

Waterproof

Non-waterproof

Dimensions

11.02 x 5 x 2.5 in

Weight

5.29 lbs

Features

Universal AC input / Full range

Built-in active PFC function, PF>0.95

Protection: Short circuit / Over current / Over voltage / Over Temperature

Forced air cooling by built-in DC fan

CH3, 4 are isolated from the other outputs and the polarity can be reversed

No minimum load requirement for CH2, 3, 4

All output can be adjustable from -5~+10%

With power good and fail signal output(Optional)

Built-in remote ON-OFF control

Fixed switching frequency at 100KHz

3 years warranty

General Specification

Line regulation (max.)	± 0.5%
Load regulation (max.)	± 0.8%
Overload protection Range	105 ~ 135% rated output power
Overload protection Type	Hiccup mode, recovers automatically after fault condition is removed
Over-voltage protection	Shut down o/p voltage, re-power on to recover
Withstand voltage	I/P-O/P:3KVAC \| I/P-FG:1.5KVAC \| O/P-FG:0.5KVAC
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
Working temperature	-10 ~ +60 ℃ (Refer to "Derating Curve")
Safety standards	UL60950-1, TUV EN60950-1 approved
Dimension (LxWxH) (mm)	28012763.5mm (LWH)
Packing	2.4Kg; 6pcs/14.8Kg/0.89CUFT
