XTR-240-24LA

Name: XTR-240-24LA
Brand: MEAN WELL
Price: 79.2 USD
Availability: OutOfStock

$79.20

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$75.24

20+

$73.66

50+

$72.07

100+

$70.49

200+

$68.90

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

24V

Rated Current

10A

Power Rating

240W

Waterproof

Non-waterproof

Dimensions

4.92 x 1.88 x 4.92 in

Weight

1.76 lbs

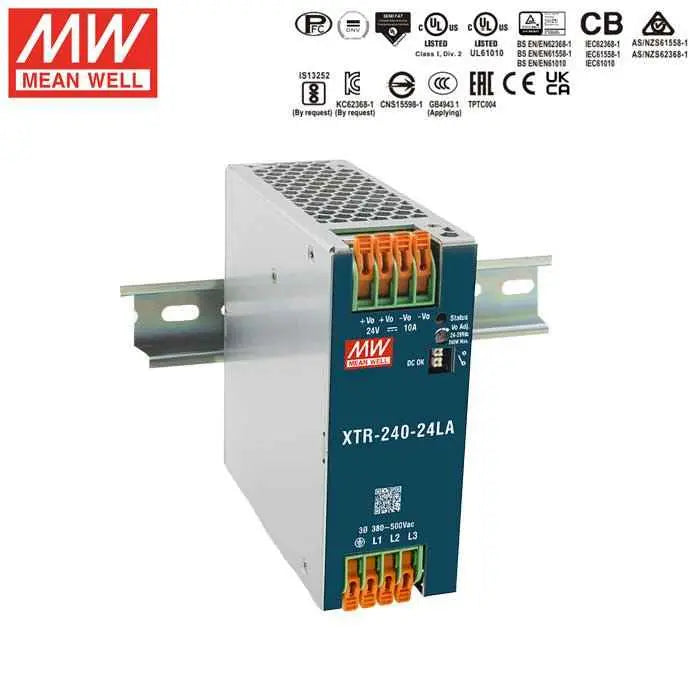

The XTR-240 series is a compact and high-performance 240W AC/DC power supply designed for industrial environments. Its ultra-slim design and robust construction make it ideal for space-constrained installations, while delivering reliable power for industrial control systems, semiconductor fabrication, and factory automation. It operates with a wide input range and offers high efficiency, ensuring energy savings and reduced carbon footprint.

Key Features:

Three-Phase 320 ~ 600Vac wide range input, 600 ~ 700Vac surge input for 1 sec. occasionally (Dual phase operation possible)
Global certifications including ITE 62368-1, Industrial 61558-1/-2-16, and Marine DNV
High efficiency up to 93.5% with no load power dissipation <2.5W
150% Peak Power capability
Built-in protections: Short circuit / Overload / Over voltage / Over temperature
Fanless design, cooling by free air convection
Operating temperature range: -40~+85°C
