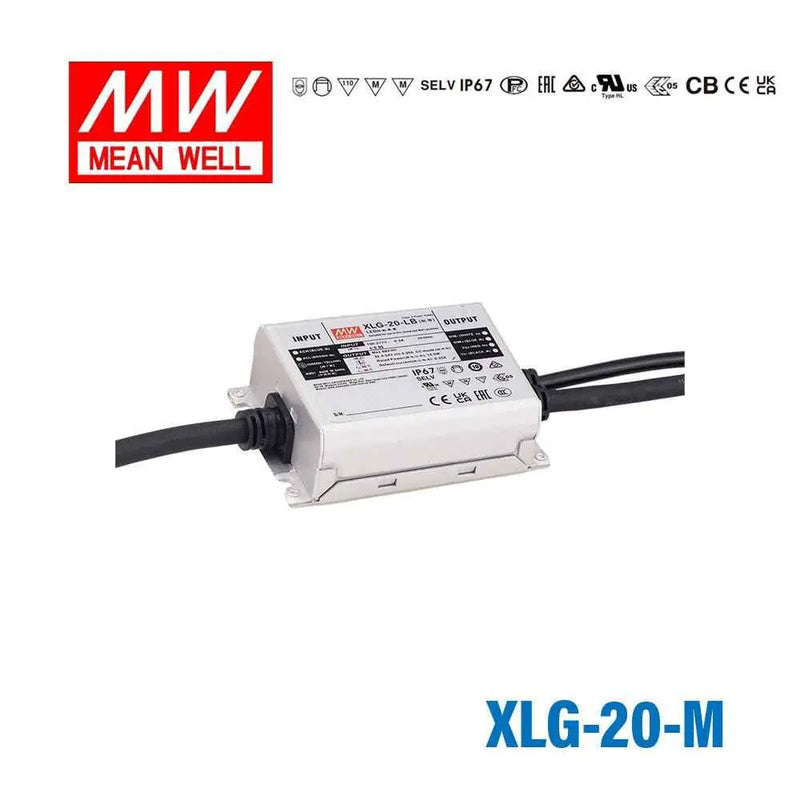

XLG-20-M

Name: XLG-20-M
Brand: MEAN WELL
Price: 17.77 USD
Availability: OutOfStock

$17.77

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$16.88

20+

$16.53

50+

$16.17

100+

$15.82

200+

$15.46

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

50V

Rated Current

0.5A

Power Rating

21W

Waterproof

IP67

Dimensions

3.74 x 2.48 x 1.18 in

Weight

0.74 lbs

Features

Constant Current mode output(Class I)

Wide input range 100~305VAC

Built-in active PFC function

Class 2 power unit

No-load power consumption <0.5W

IP67 rating for indoor or outdoor installations

3 in-1 dimming function (Isolation design)

Lifetime > 50,000 hrs

5 years warranty

General Specification

AC input voltage range	90~305VAC
AC inrush current	Cold start, 50A at 230VAC
Setup, rise, hold up time	500ms, 100ms, 12ms
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature	-40~+80°C
Safety standards	BS EN/EN62384; UL8750 approved; EAC TP TC 004
EMC standards	EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
Dimension (LxWxH)	95x63x30
Packing	24pcs / 8.67kg
