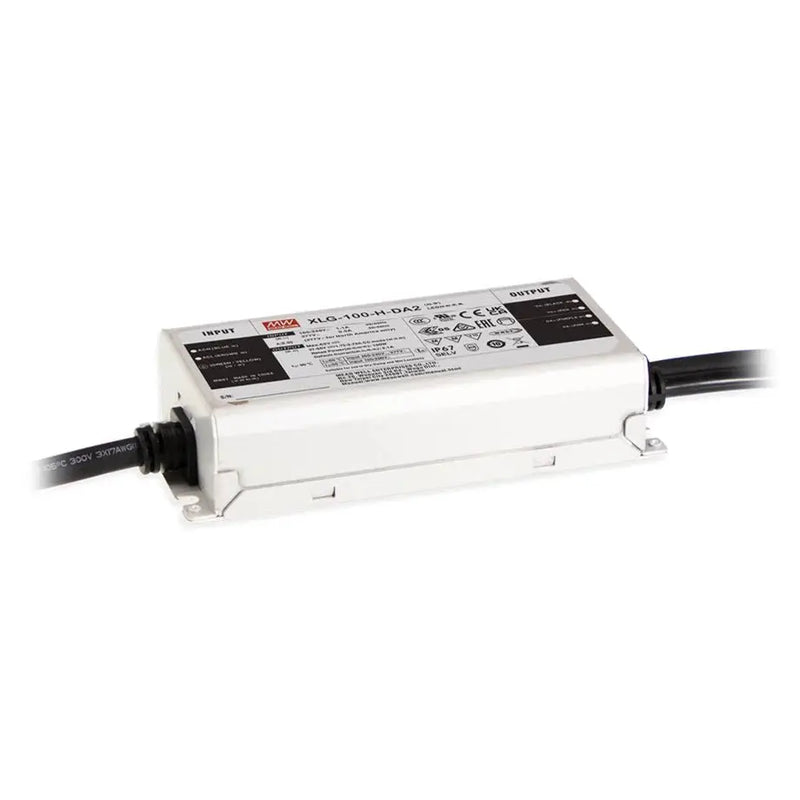

XLG-100-H-DA2

Name: XLG-100-H-DA2
Brand: MEAN WELL
SKU: 025-08492
Price: 68.81 USD
Availability: InStock

$68.81

Availability: ✔ 2 can ship immediately

ℹ️ Lead time for quantities greater than shown, contact us

Place your order within --:--:-- to ensure shipment Today

Quantity Prices

Quantity

Unit Price

10+

$65.37

20+

$63.99

50+

$62.62

100+

$61.24

200+

$59.86

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

60V

Rated Current

2.1A

Power Rating

100W

Waterproof

IP67

Dimensions

5.51 x 2.48 x 1.25 in

Weight

1.27 lbs

Features:

Wide input range 100~305V AC(Class I)
Full power output at 70~100% Constant power mode operation
Metal case with IP67, suitable for outdoor application
Surge protection with 6KV/4KV
DALI-2 Dimming with a minimum level 8%
Protection functions: SCP/OTP
Lifetime >50,000 hrs
5 years warranty

General Specification

AC input voltage range

100 ~ 305VAC 142VDC ~ 431VDC

AC inrush current (max.)

COLD START 45A(twidth=330μs measured at 50% Ipeak) at 230VAC; Per NEMA 410

Over-voltage protection

320 ~ 390VAC (Shut down output voltage when the input voltage exceeds protection voltage, recovers automatically after fault condition is removed). Can survive input voltage stress of 440Vac for 48 hours

Withstand voltage

I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC

Working temperature

Tcase = -40 ~ +90℃

Safety standards

UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13(EL) appendix J suitable for emergency installations(DC Input: 176-280Vdc) independent ,BS EN/EN62384;IS 15885(Part2/Sec13)(for XLG-100I-DA2 only); GB19510.1,GB19510.14; EAC TP TC 004; IP67 approved

Dimension (LxWxH)

140x63x32mm
