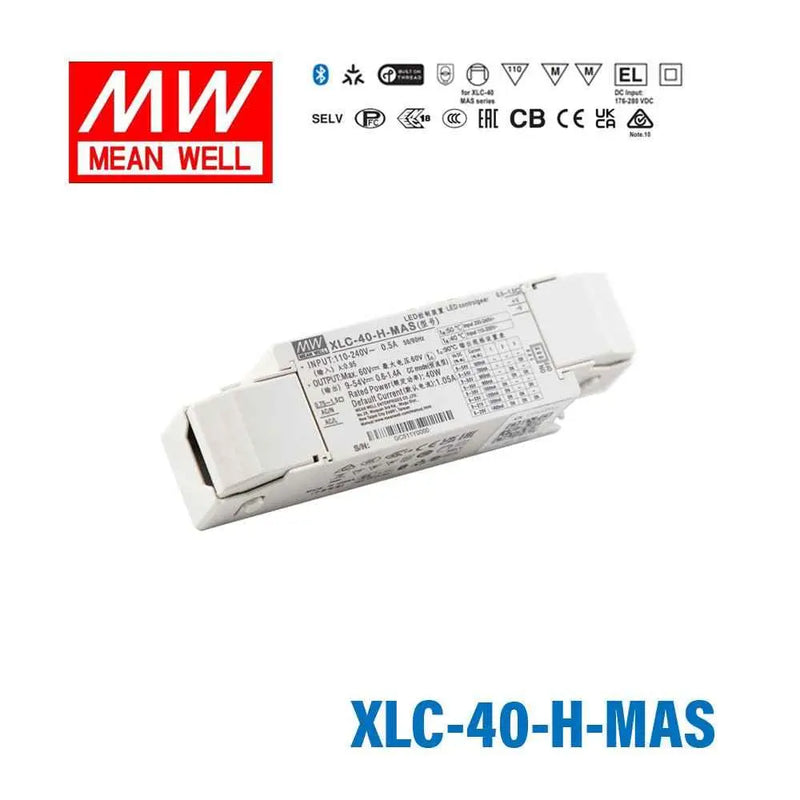

XLC-40-H-MAS

Name: XLC-40-H-MAS
Brand: MEAN WELL
Price: 39.52 USD
Availability: OutOfStock

$39.52

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$37.54

20+

$36.75

50+

$35.96

100+

$35.17

200+

$34.38

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

60V

Rated Current

1.05A

Power Rating

40W

Waterproof

Non-waterproof

Dimensions

5.78 x 1.25 x 1.57 in

Weight

0.42 lbs

Features:

Constant power mode output with multiple stage selectable by DIP switch
Plastic housing with class II and PFC design
Flicker free, complying with CE ErP directive
Standby power consumption <0.5W
Meet emergency lighting (EL) function application
Minimum dimming level 0.5%
Matter over thread, Matter 1.3 specification
5 years warranty

General Specification

AC input voltage range

100 - 305VAC 141 - 400VDC

AC inrush current (max.)

COLD START 10A(twidth= s measured at 50% Ipeak) at 230VAC 100μ ; Per NEMA 410

Short Circuit

Hiccup mode, recovers automatically after fault condition is removed

Over temperature protection

Stage 1: De-rating to 75% loading; Stage 2: De-rating to 50% loading. Recovers automatically after fault condition is removed.

Withstand voltage

I/P-O/P: 3.75KVAC

Working temperature

Tcase=-25 ~ 90 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)

Safety standards

ENEC BS EN/EN61347-1, BS EN/EN61347-2-13(EL) appendix J suitable for emergency installations( DC); *B2-54!1 BS EN/EN62384, GB/T 19510.1, GB/T 19510.213, EAC TP TC 004 approved ; CSA C22.2 No. 250.13-12 ; Design refer to AS/NZS 61347-1, AS/NZS 61347-2-13;

Dimension (LxWxH)

147*40*32mm (L*W*H)
