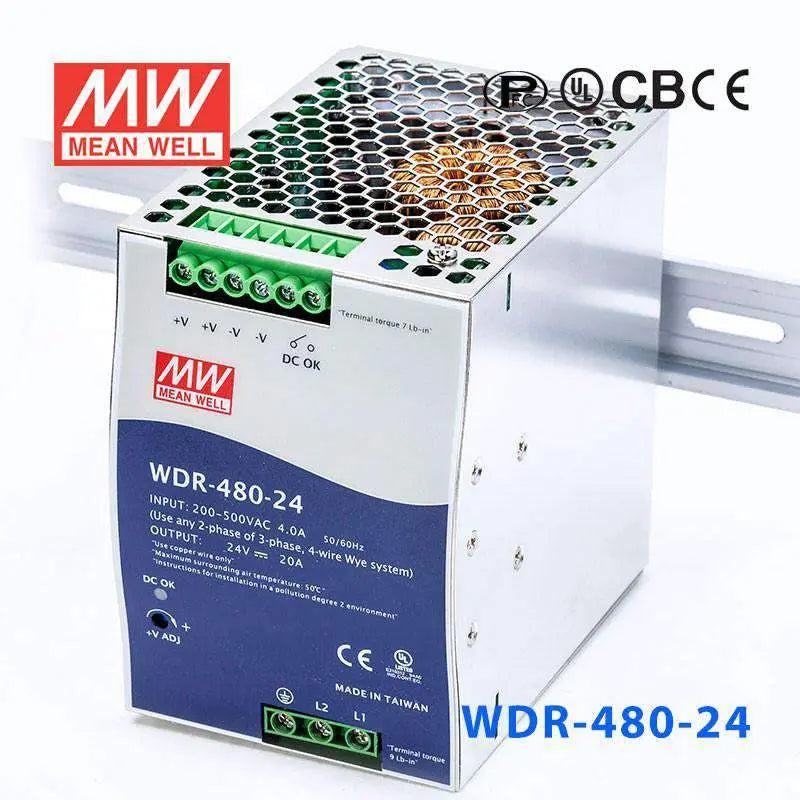

WDR-480-24

Name: WDR-480-24
Brand: MEAN WELL
SKU: 33757
Price: 148.5 USD
Availability: OutOfStock

$148.50

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$141.08

20+

$138.11

50+

$135.14

100+

$132.17

200+

$129.20

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

24V

Rated Current

20A

Power Rating

480W

Waterproof

Non-waterproof

Dimensions

4.92 x 4.92 x 3.36 in

Weight

3.74 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Features

Single and two phase wide input range 180~550VAC

Protections: Short circuit / Overload / Over voltage / Over temperature

Cooling by free air convection

Built-in constant current limiting circuit

Can be installed on DIN rail TS-35 / 7.5 or 15

UL508(industrial control equipment) approved

EN61000-6-2(EN50082-2) industrial immunity level

Built-in DC OK relay contact

100% full load burn-in test

Built-in active PFC

3 years warranty

General Specification

AC input voltage range	180~550VAC(single and two phase); 254~780VDC
AC input current	1.6A / 400VAC, 4A / 230VAC
AC inrush current (max.)	Cold start, 50A at 400VAC
DC adjustment range	24V: 24~28V, 48V: 48~55V
Overload protection	105%~130% rated output power, constant current limiting, unit will shut down after 3 sec.; auto-recovery after 1 minute if the fault condiction is removed.
Over voltage protection Range	16~18V for 12V model (only for WDR-120), 29~33V for 24V model, 56~65V for 48V model
Over voltage protection Type	Shut down o/p voltage, auto-recovery after 1 minute if the fault condition is removed
Setup, rise, hold up time	2000ms, 150ms, 16ms at full load and 230VAC; 800ms, 150ms, 18ms at full load and 400VAC
Over temp. protection	Shut down output voltage, recovers automatically after temperature goes down
Withstand voltage	I/P-O/P:3kVAC, I/P-FG:1.5kVAC, O/P-FG:0.5kVAC, O/P-DC OK:0.5kVAC, 1 minute
Working temperature	-30~+70°C (refer to output derating curve)
DC OK signal	Relay Contact
Leakage current	<3.5mA at 530VAC
Vibration	10~500Hz, 2G 10 minutes / 1 cycle, period of 60 minutes each along X, Y, Z axes
Safety standards	UL508 approved ; IEC60950-1 CB approved by SIQ ; Design refer to GL
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level
Connection	I/P: 3 poles, O/P: 6 poles screw DIN terminal
Dimension (LxWxH)	85.5x125.2x128.5
Packing	8pcs / 14.6kg
