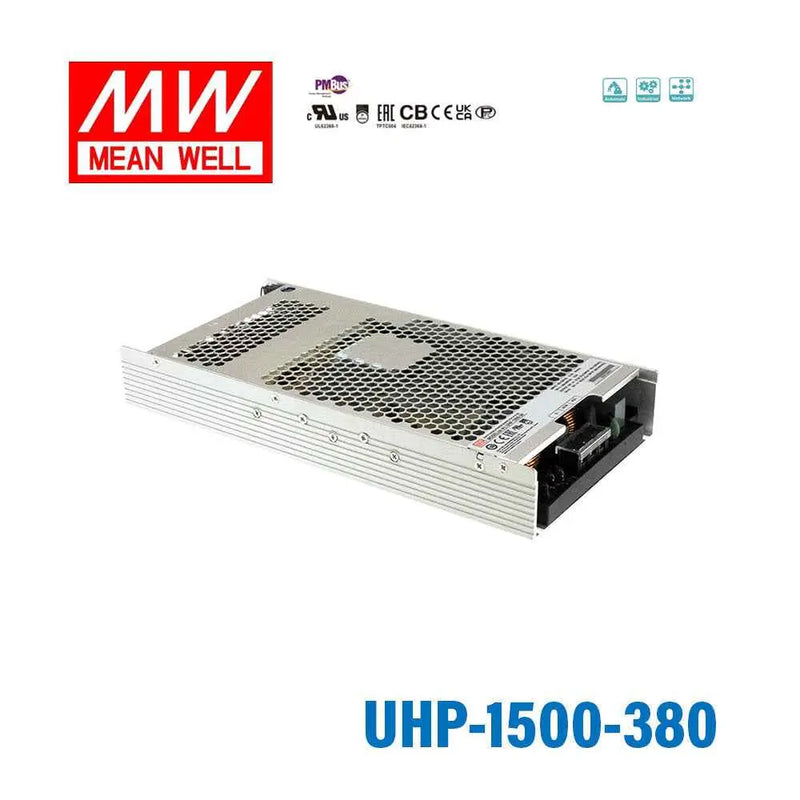

UHP-1500-380

Features:
⦁ High voltage output (115/230/380V)
⦁ Fanless and conduction-cooled design
⦁ Slim and 1U Low profile (41mm)
⦁ Built-in active PFC function
⦁ DC 12V/0.4A auxiliary power
⦁ Output voltage and constant current level programmable (PV/PC)
⦁ Protections: Short circuit / Over load / Over voltage / Over temperature
⦁ Built-in remote ON-OFF control and DC OK signal
⦁ Operating altitude up to 2000 meter (E type Note.6, Blank/PM/CAN type Note.7)
⦁ LED indicator for power on
⦁ Optional PMBus or CANBus protocol
⦁ 5 years warranty
General Specification
AC Input Voltage Range
90 - 264VAC 250 - 370VDC
AC Inrush Current (max.)
Cold start 60A/230VAC
Overload Protection
105-125% rated output power
Protection type: Constant current limiting, unit will shutdown after 2-5 sec, re-power on to recover.
Short Circuit
Constant current limiting, unit will shutdown after 2-5 sec, re-power on to recover.
Over-voltage Protection
(428 - 460V)
Protection type:vShut down O/P voltage,re-power on to recover
Over Temperature
Protection type: Shut down O/P voltage, recovers automatically after temperature goes down
Withstand Voltage
OVC Ⅲ I/P-O/P:6KVDC I/P-FG:4KVDC O/P-FG:4KVDC
Working Temperature
-30 - +70℃ (Refer to “Derating Curve")
Safety Standards
UL62368-1,TUV BS EN/EN62368-1, EAC TP TC 004 approved
Dimension (LxWxH)
290x140x41mm
