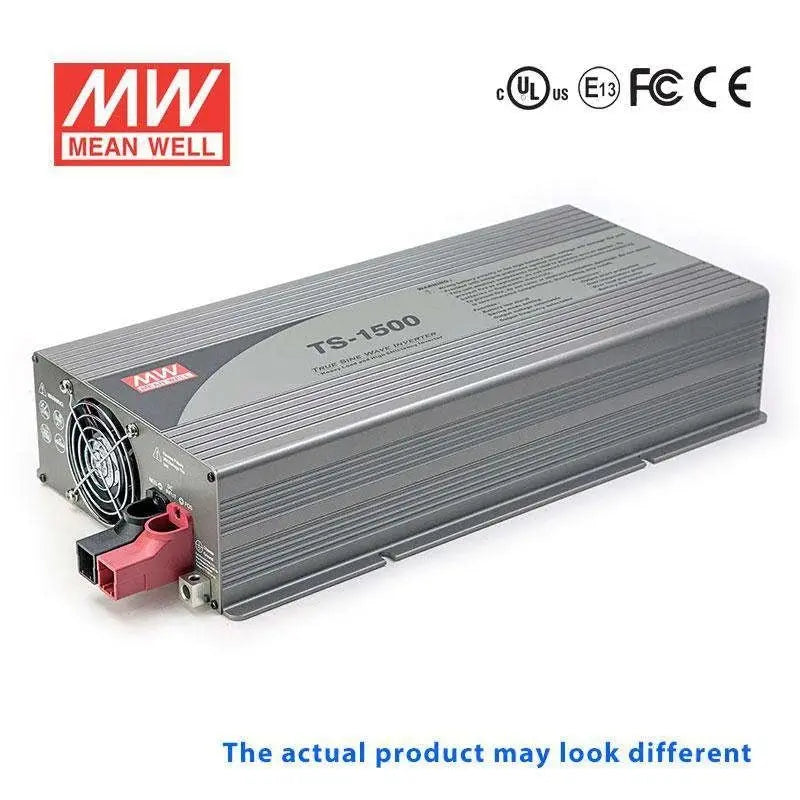

TS-1500-248C

Name: TS-1500-248C
Brand: MEAN WELL
Price: 527.72 USD
Availability: OutOfStock

$527.72

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$501.33

20+

$490.78

50+

$480.23

100+

$469.67

200+

$459.12

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

230V

Power Rating

1500W

Waterproof

Non-waterproof

Dimensions

16.53 x 8.66 x 3.46 in

Weight

15.01 lbs

Features

True sine wave output (THD<3%)

High surge power up to 3000W

High efficiency up to 91%

Built-in remote ON-OFF control

Thermostatically controlled cooling fan

Protections: Short circuit / Overload / Over voltage

Application: Home appliance, power tools, office and portable equipment, vehicle, and yacht ....etc.

Support RS-232 communication (communication cable order No.: RJ11-RS232, sold separately) Note. 10

3 years warranty

General Specification

AC output voltage range	100/110/115/120VAC;200/220/230/240VAC adjustable via setting button on the front panel
AC output waveform	True sine wave, THD<3.0%
Overload temperature	Shut down o/p voltage, re-power on to recover, by internal RTH1 detect power transistor
Overload	105 ~ 115% load for 180 sec., 115% ~ 125% load for 10 sec
Withstand voltage	Bat I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
Working temperature	0 ~ +40℃ @ 100% load ; 60℃ @ 50% load
Safety standards	EN60950-1 approved
EMC standards	EN55022 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark, EN61000-4-2,3,8
Dimension (LxWxH)	420 x 220 x 88mm
Packing	6.81Kg; 2pcs/14.6Kg/1.61CUFT
