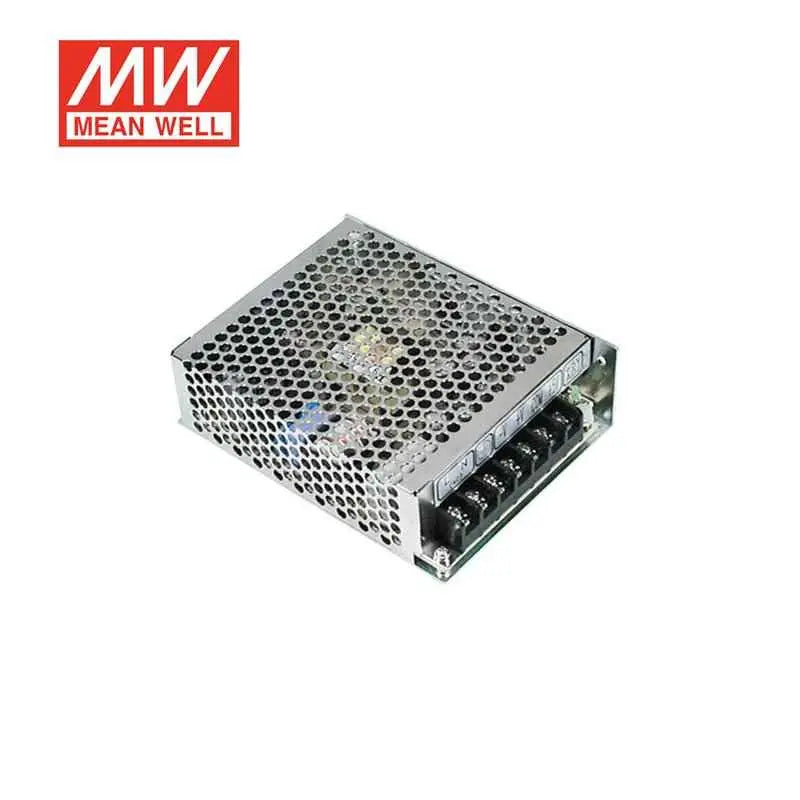

T-40C

Name: T-40C
Brand: MEAN WELL
Price: 14.87 USD
Availability: OutOfStock

$14.87

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$14.13

20+

$13.83

50+

$13.53

100+

$13.23

200+

$12.94

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

Rated Current

Power Rating

45W

Waterproof

Non-waterproof

Dimensions

5.07 x 3.85 x 1.49 in

Weight

0.97 lbs

Features

Universal AC input / Full range

Protections: Short circuit / Overload / Over voltage

Cooling by free air convection

100% full load burn-in test

Fixed switching frequency at 40KHz

2 years warranty

General Specification

Line regulation (max.)	± 0.5%
Load regulation (max.)	± 0.5%
Overload protection Range	105 ~ 150%/115VAC rated output power
Overload protection Type	Hiccup mode, recovers automatically after fault condition is removed
Over-voltage protection	Hiccup mode, recovers automatically after fault condition is removed
Withstand voltage	I/P-O/P:3KVAC \| I/P-FG:1.5KVAC \| O/P-FG:0.5KVAC
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
Working temperature	-10 ~ +60 ℃ (Refer to "Derating Curve")
Safety standards	CSA 60950-1, (UL60950-1, IEC60950-1, TUV EN60950-1) approved
Dimension (LxWxH) (mm)	1299838mm (LWH)
Packing	0.44Kg; 30pcs/14.7Kg/0.86CUFT
