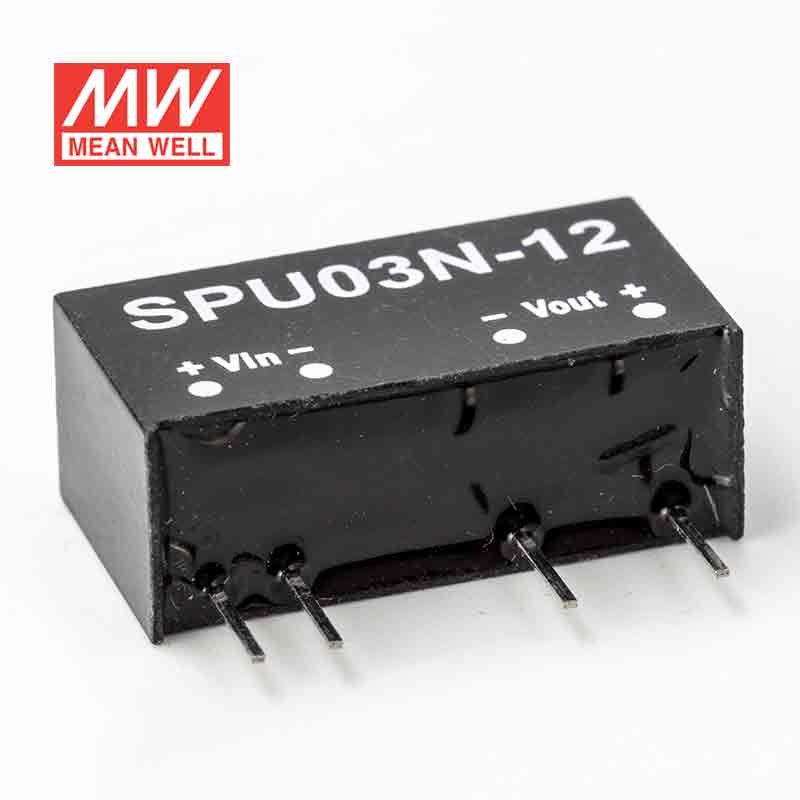

SPU03N-12

Name: SPU03N-12
Brand: MEAN WELL
Price: 5.81 USD
Availability: OutOfStock

$5.81

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$5.52

20+

$5.40

50+

$5.29

100+

$5.17

200+

$5.05

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

15V

Rated Current

0.2A

Power Rating

Waterproof

Non-waterproof

Dimensions

0.77 x 0.40 x 0.29 in

Weight

0.00 lbs

Features

3000VDC I/O isolation

Internal SMD technology

Built-in EMI filter

Protection: Short circuit

Cooling by free air convection

non-conductive plastic case

Single in-line package

100% full load burn-in test

Low cost / High reliability

2 years warranty

General Specification

Voltage accuracy	±2.0%
Vibration	10 ~ 500Hz, 2G 10min./1 cycle, the period for 60min. each along the X, Y, and Z axes
Cooling	Free-air convection
Short circuit protection	Momentary; Protection type: Broken
Working temperature	-40 ~ +90℃ (Refer to "Derating Curve")C
EMC	Compliance to EN55032 Class A, EN61000-4-2,3,4,5,6,8
Temp. Coefficient	±0.03% / ℃ (0 ~ 50℃)
Dimension (LxWxH) (mm)	19.6 x 7.5 x 10.2mm
Potting material	UL 94V-0 rated
