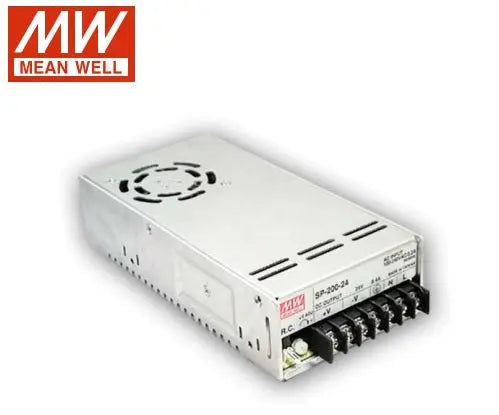

SP-200-13.5

Name: SP-200-13.5
Brand: MEAN WELL
Price: 38.76 USD
Availability: OutOfStock

$38.76

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$36.82

20+

$36.05

50+

$35.27

100+

$34.50

200+

$33.72

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

13.5V

Rated Current

14.9A

Power Rating

201.15W

Waterproof

Non-waterproof

Dimensions

7.83 x 3.89 x 1.96 in

Weight

1.87 lbs

Features

Universal AC input / Full range

Built-in active PFC function PF>0.93

Protections:Short circuit/ Overload / Over voltage

Built-in constant current limiting circuit

Remote ON-OFF control(Optional)

LED indicator for power on

100% full load burn-in test

Fixed switching frequency at PFC:67KHz PWM:134KHz

3 years warranty

General Specification

AC input voltage range	88~264VAC; 124~370VDC
AC inrush current (max.)	40A at 230VAC
DC adjustment range	±10% rated output voltage
Overload protection Range	105%~150%
Overload protection Type	Hiccup mode, auto-recovery
Over voltage protection Range	115%~145%
Over voltage protection Type	Shut down O/P voltage, re-power on to recover
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-30~+70°C (refer to output derating curve)
Safety standards	UL60950-1, TUV EN60950-1, CCC GB4943 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, GB9254
Connection	9P / 9.5mm pitch terminal block
Dimension (LxWxH)	215x115x30
