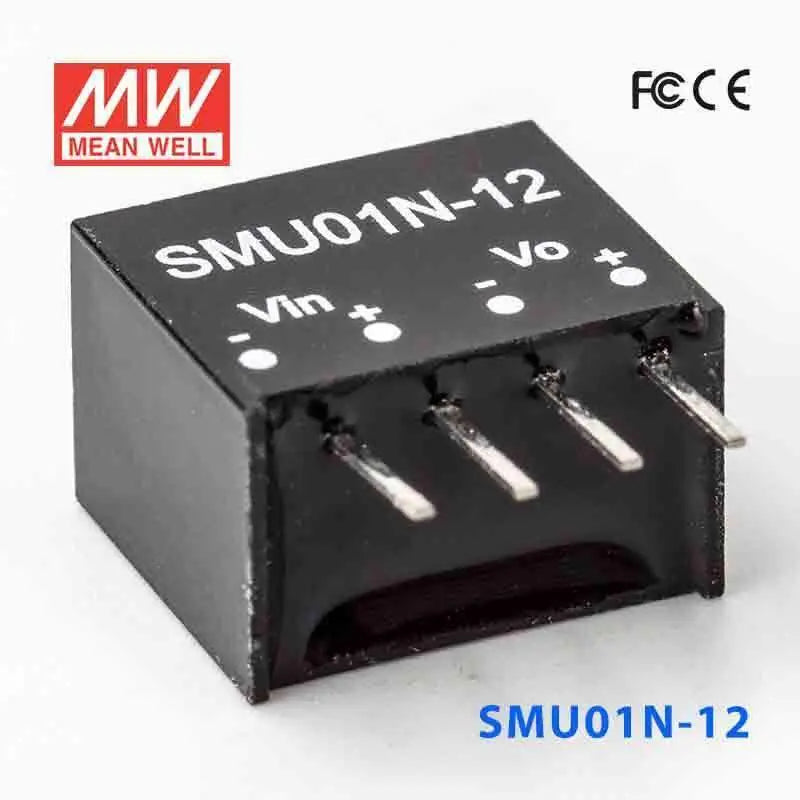

SMU01N-12

Name: SMU01N-12
Brand: MEAN WELL
Price: 4.01 USD
Availability: OutOfStock

$4.01

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$3.81

20+

$3.73

50+

$3.65

100+

$3.57

200+

$3.49

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

12V

Rated Current

0.08A

Power Rating

Waterproof

Non-waterproof

Dimensions

0.45 x 0.39 x 0.29 in

Weight

0.00 lbs

Features

1500VDC I/O isolation

Internal SMD technology

Operating temperature range -40~85oC without derating

Built-in EMI filter

Protection: Short circuit

Cooling by free air convection

Non-conductive plastic case

100% full load burn-in test

Low cost, high reliability

Dual in line package for SMA01

Industry standard pinout

2 years warranty

General Specification

Voltage set point accuracy	±2% (max.)
Line regulation	±1.2% (max.) for 1% input variation
Load regulation	±8% (max.)@20~100% load
Input reflected ripple	100mVp-p
Efficiency	80% (typical)
Short circuit protection	Momentary
Switching frequency	100kHz (min.)
I/O isolation voltage	1500VDC (min.)
I/O isolation resistance	100MQ(min.)@500DC
Working temperature	-40°C to +85°C
Storage temperature	-55°C to +125°C
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Isolation capacitance	80pF (max.)
Dimension (LxWxH) (mm)	0.46""x 0.24""x 0.4""; 0.5""x 0.4""x 0.28""
Safety standards	UL60950-1 approved
