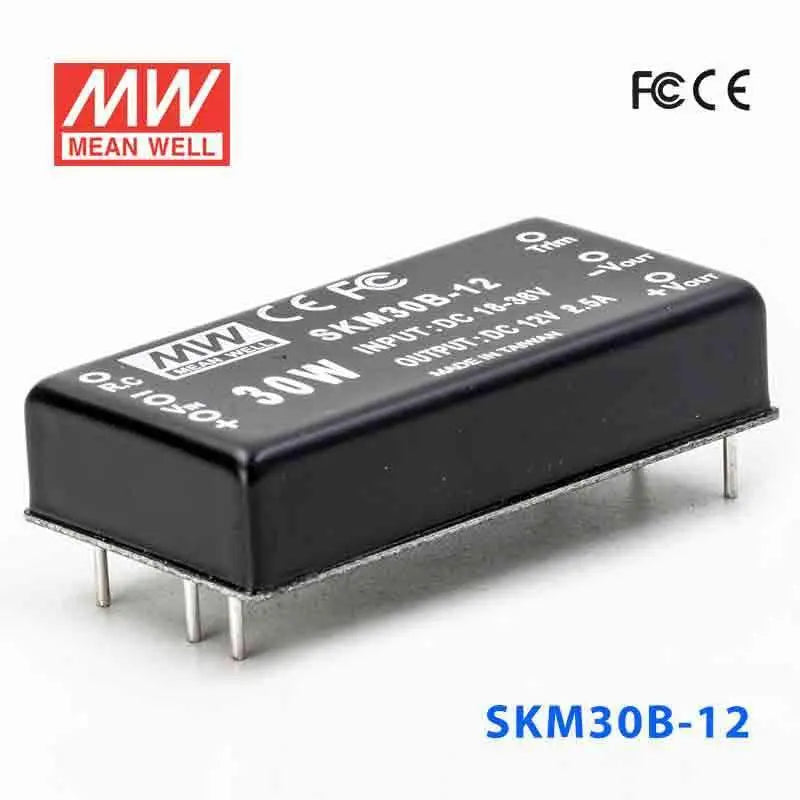

SKM30B-12

Name: SKM30B-12
Brand: MEAN WELL
Price: 30.87 USD
Availability: OutOfStock

$30.87

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$29.33

20+

$28.71

50+

$28.09

100+

$27.47

200+

$26.86

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

12V

Rated Current

2.5A

Power Rating

30W

Waterproof

Non-waterproof

Dimensions

2 x 1 x 0.44 in

Weight

0.06 lbs

Features

2""x 1"" compact size

2:1 wide input range

1500VDC I/O isolation

Built-in remote ON/OFF control

Built-in EMI filter

Protection: Short circuit / Overload Input and output over voltage

Cooling by free air convection

Six-sided shield metal case

100% full load burn-in test

Low cost, high reliability

Trimming output (±10%)

2 years warranty

General Specification

Voltage set point accuracy	±2% (max.)
Line regulation	±0.2% (max.)
Load regulation	±0.5% (max.)@10~100% load
Overload protection	110%~180%, auto-recovery
Efficiency	90% (typical)
Short circuit protection	Continuous, auto-recovery
I/O isolation voltage	1500VDC (min.)
I/O isolation resistance	100MQ(min.)@500VDC
Working temperature	-40~+75°C (refer to output derating curve)
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Dimension (LxWxH) (mm)	2""x 1""x 0.44""
