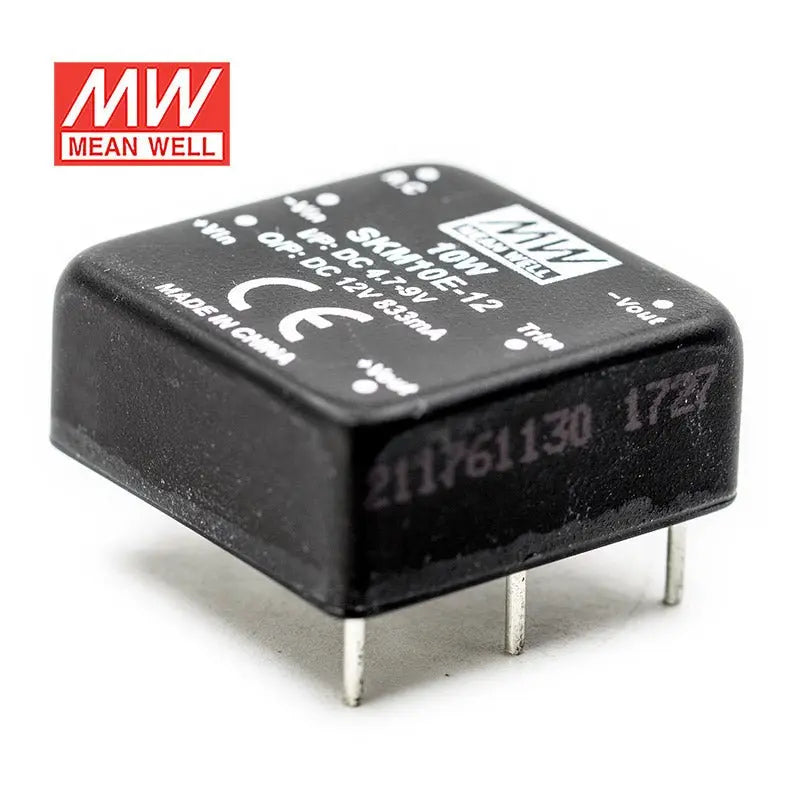

SKM10E-12

Name: SKM10E-12
Brand: MEAN WELL
Price: 16.74 USD
Availability: OutOfStock

$16.74

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$15.90

20+

$15.57

50+

$15.23

100+

$14.90

200+

$14.56

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

12V

Rated Current

0.83A

Power Rating

10W

Waterproof

Non-waterproof

Dimensions

1 x 1 x 0.40 in

Weight

0.03 lbs

Features

DIP 1"x 1" package with industry-standard pinout

2:1 wide input range

Operating temperature range -40 ~ + 85°C

No minimum load required

Comply to BS EN/EN55032 radiated Class A without additional components

High Efficiency up to 90%

Protection: Short circuit / Overload Input and output over-voltage

1.5KVDC I/O isolation

Remote ON/OFF control and Trimming output (±10%)

3 years warranty

General Specification

Voltage set point accuracy	±1.5% (max.)
Line regulation	±0.2% (max.)
Load regulation	Single output models: 0.2%, Dual output models: 1%
Overload protection	110%~140%, Protection type: Recovers automatically after fault condition is removed
Efficiency	89% (typical)
Short circuit protection	Continuous, auto-recovery
I/O isolation voltage	1500VDC (min.)
I/O isolation resistance	I/P-O/P:100M Ohms / 500VDC / 25 / 70% RH
Working temperature	-40~+85°C (refer to output derating curve)
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Dimension (LxWxH) (mm)	25.4 x 25.4 x 10.2mm (1 x 1 x 0.4 inch)
