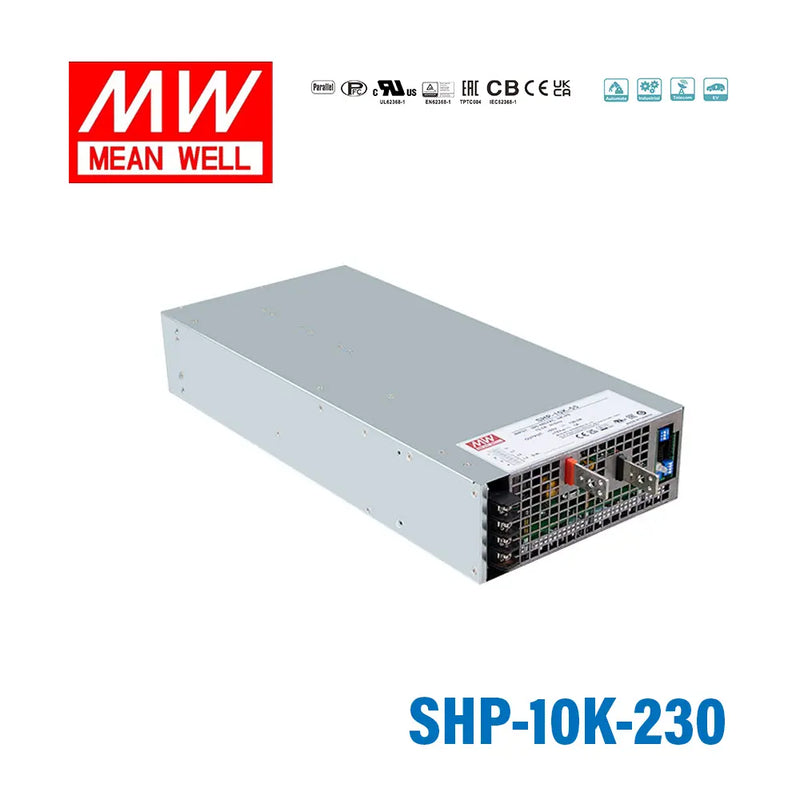

SHP-10K-230

$2,645.00
Availability: Out of stock
ℹ️ Lead time for quantities greater than shown, contact us
Quantity Prices
Quantity
Unit Price
10+
$2,512.75
20+
$2,459.85
50+
$2,406.95
100+
$2,354.05
200+
$2,301.15
*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Output Voltage
230V
Rated Current
43.5A
Power Rating
10000W
Waterproof
Non-waterproof
Dimensions
18.11 x 8.30 x 3.28 in
Weight
26.23 lbs

Features:

  • 3ψ 3-wire / △ or Y 340~530VAC or 3ψ 4-wire / Y 340-530VAC
  • High efficiency up to 97%
  • Water / forced air cooling selectable
  • Built-in CANBus/Optional PMBus/MODBus-RTU/RS-485 protocol
  • Output voltage and constant current level programmable
  • Active current sharing up to 4 units (40KW)
  • Built-in remote ON-OFF control / Auxiliary power / Alarm signal
  • Protections: Short circuit / Overload / Over voltage / Over temperature / Fan fail
  • 5 years warranty

General Specification

AC Input Voltage Range

3ψ 3-wire or 3ψ 4-wire / 340 ~ 530VAC

AC Inrush Current (max.)

40A/400VAC 65A/480VAC

Overload Protection

100 ~ 105% of rated current

Protection type : Constant current limiting, unit will shutdown after 5 sec. re-power on to recover

Over-Voltage Protection

60.5-69.1V | 145-166V | 273-312V | 420-480V

Protection type : Shut down o/p voltage, re-power on to recover

Over Temperature Protection

Shut down o/p voltage, recovers automatically after temperature goes down

Withstand Voltage

I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC

Working Temperature

-30 ~ +70℃ (Refer to "Derating Curve")

Safety Standards

UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved

Dimension (LxWxH)

460x211x83.5mm
