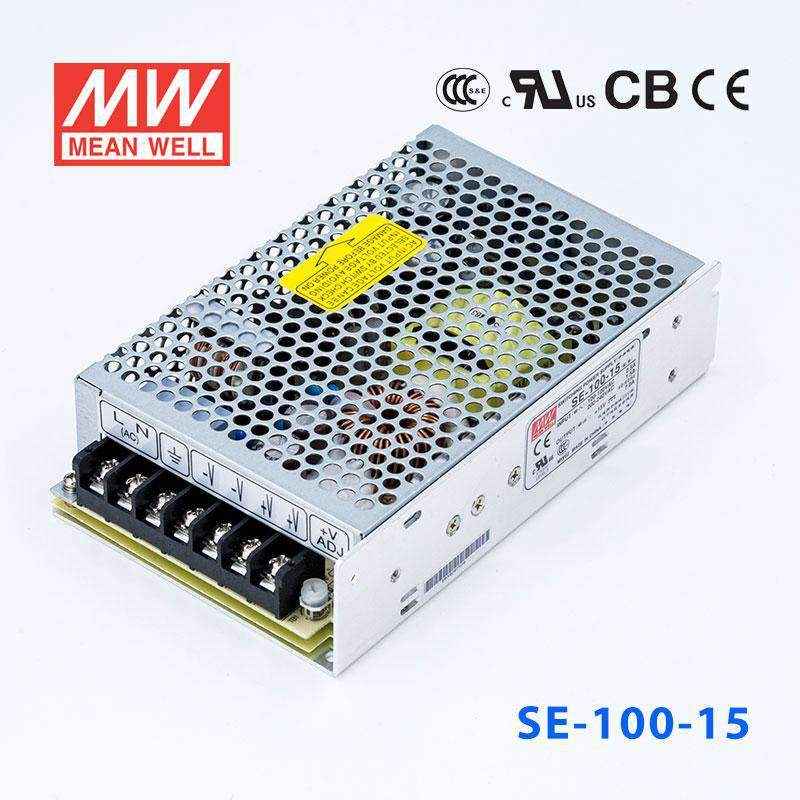

SE-100-15

Name: SE-100-15
Brand: MEAN WELL
Price: 17.67 USD
Availability: OutOfStock

$17.67

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$16.79

20+

$16.43

50+

$16.08

100+

$15.73

200+

$15.37

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

15V

Rated Current

Power Rating

105W

Waterproof

Non-waterproof

Dimensions

6.25 x 3.81 x 1.49 in

Weight

1.21 lbs

Features

AC input selectable by switch

Withstand 300VAC surge input for 5 seconds

Protections: Short circuit / Overload / Over voltage / Over temperature

Built-in constant current limiting circuit

Withstand 5G vibration test

100% full load burn-in test

LED indicator for power on

2 years warranty

General Specification

AC input voltage range	115/230VAC by switch
AC inrush current (max.)	Cold start, 36A at 230VAC
DC adjustment range	-5%~10% rated output voltage
Overload protection Range	110%~150%
Overload protection Type	Hiccup mode, auto-recovery
Over voltage protection	115%~145%
Withstand voltage	I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P-FG: 0.5kVAC
Working temperature	-20~+60°C
Safety standards	UL60950-1
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11,
Connection	9P/9.5mm pitch terminal block with cover
Dimension (LxWxH)	159x 97x 38
Case No.	901
Packing	30pcs / 17.5kg
