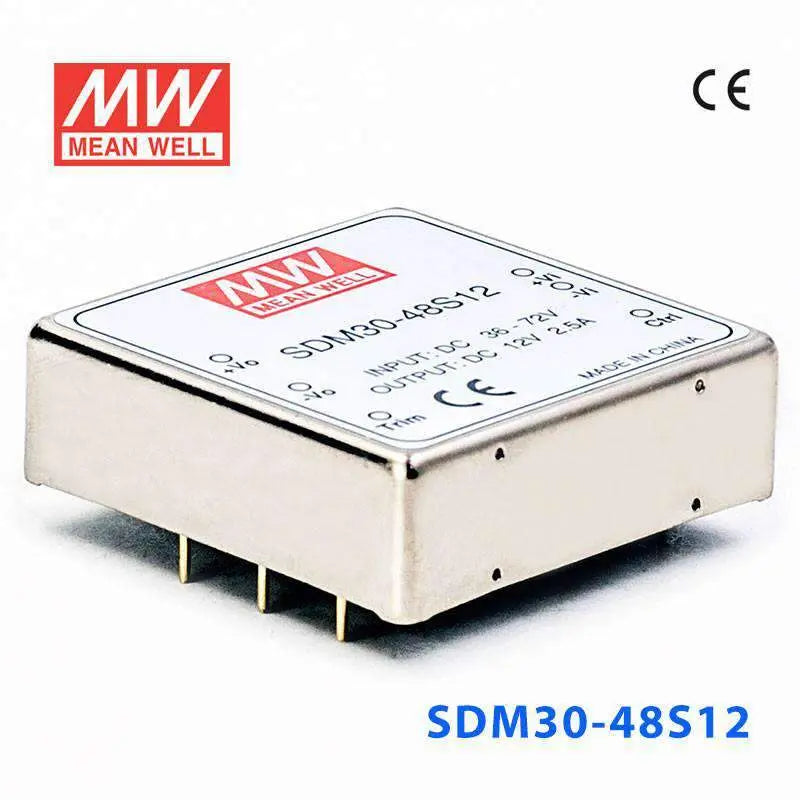

SDM30-48S12

Name: SDM30-48S12
Brand: MEAN WELL
Price: 26.27 USD
Availability: OutOfStock

$26.27

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$24.96

20+

$24.43

50+

$23.91

100+

$23.38

200+

$22.85

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

12V

Rated Current

2.5A

Power Rating

35W

Waterproof

Non-waterproof

Dimensions

2 x 2 x 0.62 in

Weight

0.22 lbs

Features

Wide 2:1 DC input range
In/out capacitance 1000pF
Protections: Short circuit / Over current / Over voltage / Over temperature
1000 DC I/O isolation for D/D
Built-in remote ON/OFF control
Cooling by free air convection
100% full load burn-in test
Fixed switching frequency at 225KHz
Low cost
High relibility
2 years warranty

Environmental Documents

📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
