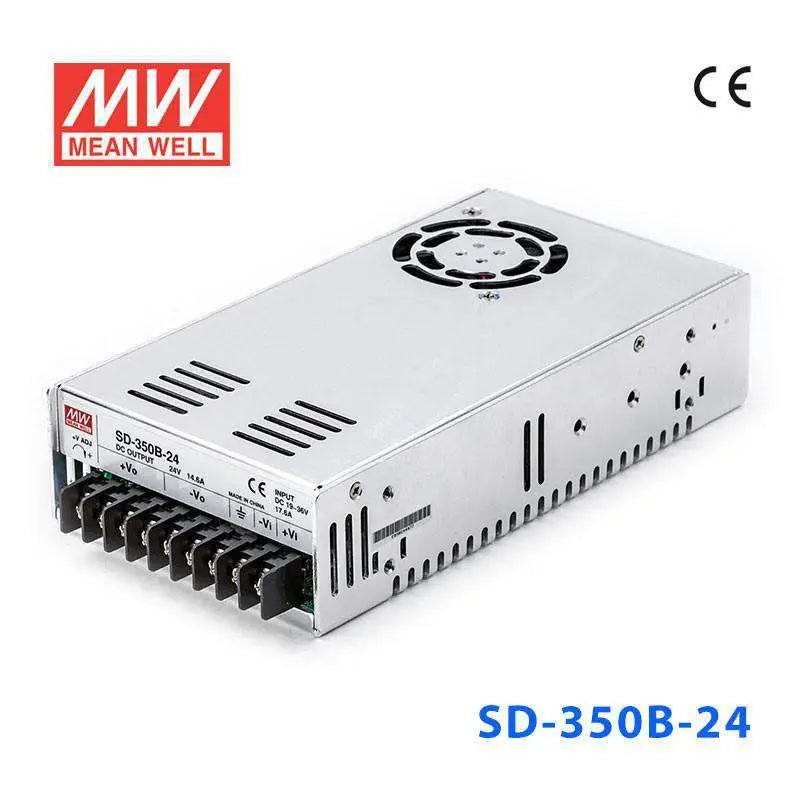

SD-350B-24

Name: SD-350B-24
Brand: MEAN WELL
SKU: 70666
Price: 94.67 USD
Availability: InStock

$94.67

Availability: ✔ 12 can ship immediately

ℹ️ Lead time for quantities greater than shown, contact us

Place your order within --:--:-- to ensure shipment Today

Quantity Prices

Quantity

Unit Price

10+

$89.94

20+

$88.04

50+

$86.15

100+

$84.26

200+

$82.36

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

24V

Rated Current

14.6A

Power Rating

350.4W

Waterproof

Non-waterproof

Dimensions

8.46 x 4.52 x 1.96 in

Weight

2.42 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

The SD-350B-24 is a 350W enclosed DC-DC converter designed for industrial automation, telecommunications equipment, transportation systems, and distributed power applications requiring a stable 24VDC output. The unit accepts a wide DC input range and provides highly efficient power conversion with excellent regulation and reliability. Built with a rugged enclosed design and fan-assisted cooling system, it is suitable for continuous operation in demanding environments. The converter includes built-in protection functions such as short circuit, overload, overvoltage, input reverse polarity, and overtemperature protection for enhanced system reliability. Its durable construction and wide operating temperature range make it ideal for industrial and communication applications.

General Specifications

Parameter	Specification
Model	SD-350B-24
Series	SD-350
Power Rating	350W
Output Voltage	24VDC
Rated Current	14.6A
Input Voltage Range	19–72VDC
Input Frequency	DC Input
Efficiency (Typical)	83%
No. of Outputs	2
Operation Mode	Constant Voltage
Operating Temperature	-10°C to +60°C
Cooling Method	Built-in DC Fan
Dimensions	215 × 115 × 50mm
Weight	1.15kg
Protection	Short Circuit / Overload / Over Voltage / Reverse Polarity / Over Temperature
Certifications	UL, TUV, CE, EAC, CB
