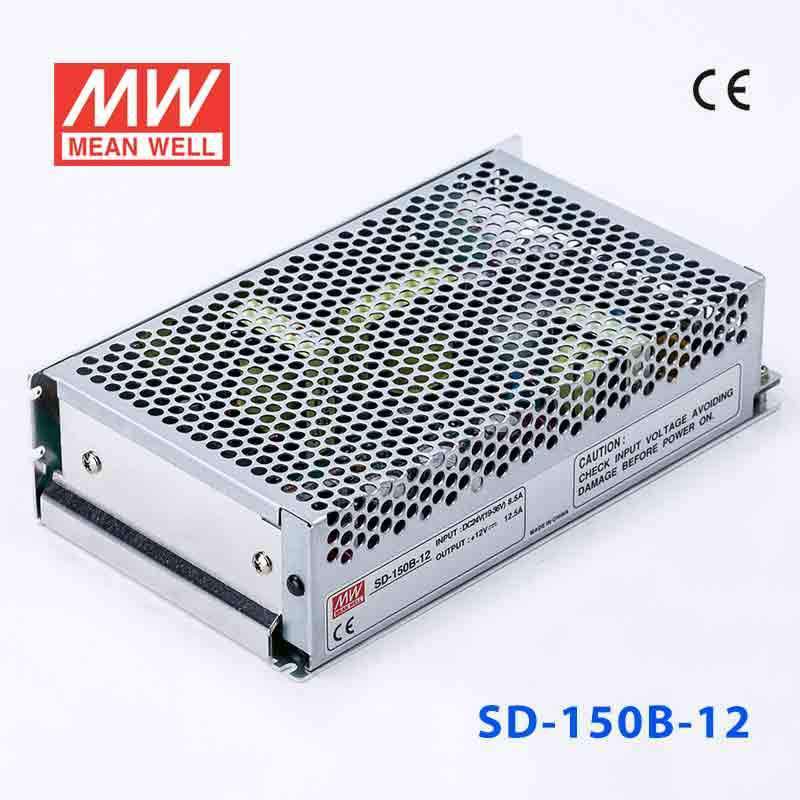

SD-150B-12

Name: SD-150B-12
Brand: MEAN WELL
Price: 49.42 USD
Availability: OutOfStock

$49.42

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$46.95

20+

$45.96

50+

$44.97

100+

$43.98

200+

$43.00

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

12V

Rated Current

12.5A

Power Rating

150W

Waterproof

Non-waterproof

Dimensions

7.83 x 4.33 x 1.96 in

Weight

1.89 lbs

Features

2:1 wide input range

Protections: Short circuit / Overload / Over voltage

1500VAC I/O isolation

Built-in EMI filter, low ripple noise

100% full load burn-in test

24V and 48V input voltage design refer to LVD

Low cost

High reliability

2 years warranty

General Specification

Over Load Protection	105 ~ 135% rated output power Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over Voltage Protection	16.8V ~ 20V/10% LOAD \| 31.5 ~ 37.5V/10% LOAD Protection type: Hiccup mode, recovers automatically after fault condition is removed
Withstand voltage	I/P-O/P:1.5KVAC \| I/P-FG:2KVAC \| O/P-FG:0.5KVAC
Working temperature	-10 ~ +60 (Refer to output load derating curve)
Safety standards	IEC 62368-1(for D type only) approved /BS EN/, design refer to AS/NZS 62368.1
EMC standards	With external components Compliance to EN55032 Class B;EN61000-3-,3，EN61000-4-2,3,4,5,6,8
Dimension (LxWxH)(mm)	19911050mm (LWH)
