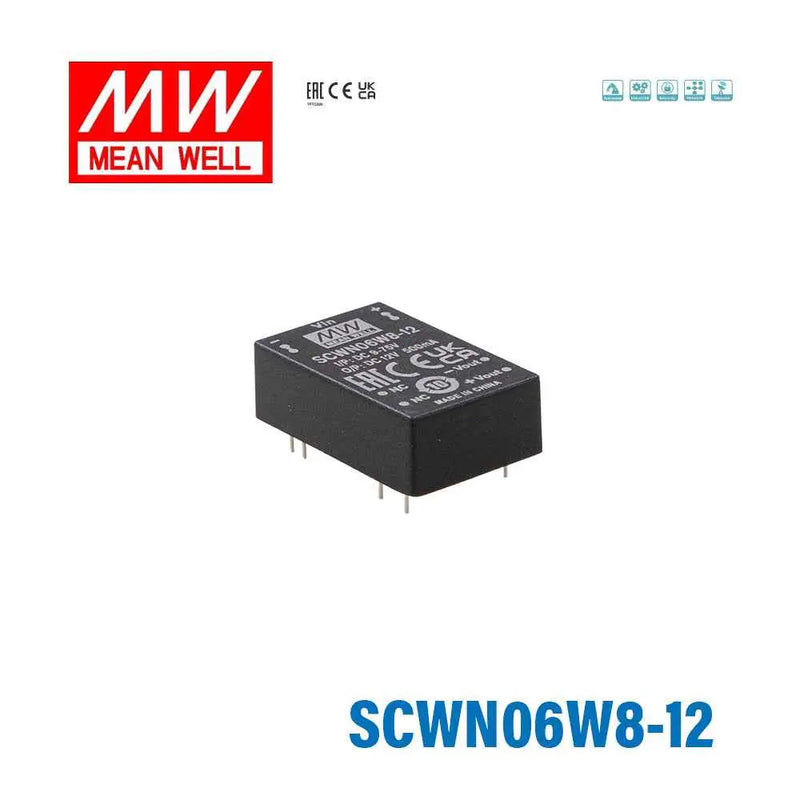

SCWN06W8-12
Manufacturer MEAN WELL

SCWN06W8-12

Availability: Out of stock
6 W12 V0.00 A9V–75V in

Request a Backorder

Submit your request and we will confirm lead time.

SCWN06W8-12
Quantity Prices (USD)
Quantity
Unit Price (USD)
1+
$10.31 USD
10+
$9.79 USD
20+
$9.59 USD
50+
$9.38 USD
100+
$9.18 USD
200+
$8.97 USD
All prices are displayed in USD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
9V~75V
Output Voltage
12V
Rated Current
0.00A
Power Rating
6W
Waterproof
Non-waterproof
Dimensions & Weight
1.25 x 0.79 x 0.40 in0.02 lbs

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

Features:

  • DIP24 package with industry standard pinout
  • 8:1(9-75Vdc) ultra-wide input range
  • Operating temperature range -40 - +95℃
  • No minimum load required
  • Comply to BS EN/EN55032 radiated Class B without additional components
  • High efficiency up to 86%
  • Protections: Short circuit (Continuous) / Overload / Over voltage / UVLO
  • Remote ON/OFF control (Optional)
  • 3KVdc I/O isolation
  • 3 years warranty

    General Specification:


Input Voltage
Nominal 12V, 24V,36V,48V,72V (9 - 75V)
Protection
2A Fast-Acting Type
Short Circuit Protection
Protection type : Continuous, automatic recovery
Over Load Protection
110 - 230% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
Over Voltage Protection
Protection type : Clamp by zener diode
Under Voltage Lockout
Start-up voltage: 8.8Vdc
Shutdown voltage: 8Vdc
Withstand Voltage
I/P-O/P:3KVdc
Operating Temperature
-40 - +95℃ (Refer to "Derating Curve")
Safety Standard
EAC TP TC 020/2011 approved
Dimension (LxWxH)
31.8 x 20.3 x 10.2mm

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
