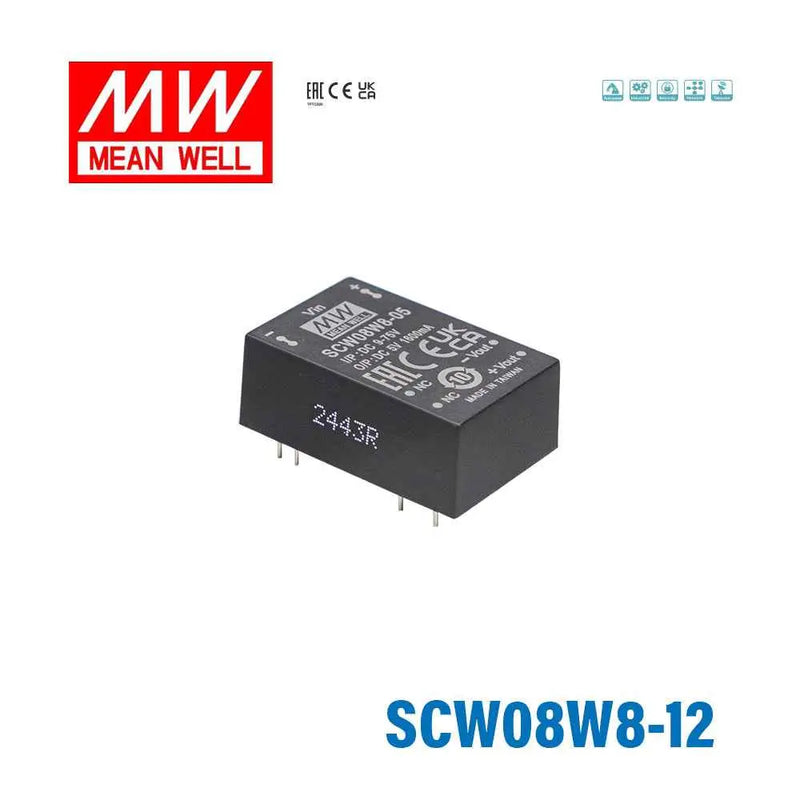

SCW08W8-12

Name: SCW08W8-12
Brand: MEAN WELL
Price: 16.14 USD
Availability: OutOfStock

$16.14

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$15.33

20+

$15.01

50+

$14.69

100+

$14.36

200+

$14.04

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

12V

Rated Current

0.01A

Power Rating

Waterproof

Non-waterproof

Dimensions

1.25 x 0.79 x 0.48 in

Weight

0.03 lbs

Features:

DIP24 package with industry standard pinout
8:1(9-75Vdc) ultra-wide input range
Operating temperature range -40 - +90℃
No minimum load required
Comply to BS EN/EN55032 radiated Class A without additional components
High efficiency up to 86%
Protections: Short circuit (Continuous) / Overload / Over voltage / UVLO
Remote ON/OFF control (Optional)
3KVdc I/O isolation
3 years warranty
General Specification:

Input Voltage
Nominal 12V, 24V,36V,48V,72V (9 - 75V)
Protection
Fuse recommended. 3A Slow-Blow Type
Short Circuit Protection
Protection type : Continuous, automatic recovery
Over Load Protection
200 - 300% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
Over Voltage Protection
Protection type : Clamp by TVS diode
Under Voltage Lockout
Start-up voltage: 8.8Vdc
Shutdown voltage: 8Vdc
Withstand Voltage
I/P-O/P:3KVdc
Operating Temperature
-40 - +90℃ (Refer to "Derating Curve")
Safety Standard
EAC TP TC 020/2011 approved
Dimension (LxWxH)
31.8 x 20.3 x 12.2mm
