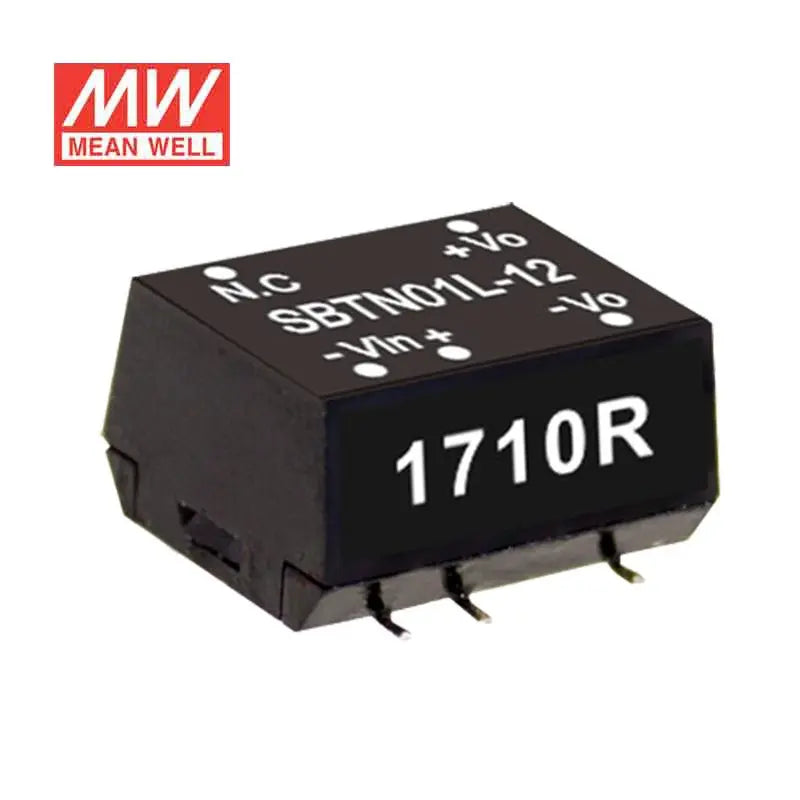

SBTN01N-12

Name: SBTN01N-12
Brand: MEAN WELL
Price: 3.01 USD
Availability: OutOfStock

$3.01

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$2.86

20+

$2.80

50+

$2.74

100+

$2.68

200+

$2.62

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

12V

Rated Current

0.08A

Power Rating

Waterproof

Non-waterproof

Dimensions

0.50 x 0.42 x 0.27 in

Weight

0.00 lbs

Features

SMD package with industry-standard pinout

Wide operating temperature range -40~+90°C

Comply to BS EN/EN55032 radiated Class B without additional components

High efficiency up to 84%

Protections: Short circuit

1.5KVDC I/O isolation

Low cost

Optional reel packing

3 years warranty

General Specification

Voltage accuracy	±2.0%
Vibration	10~500Hz, 2G 10min./1 cycle, a period for 60 min, each along X, Y, and Z axes
Cooling	Free-air convection
Short circuit protection	0.5-second max. Optional models (SC-suffix): Continuous
Working temperature	-40 ~ +90℃ (Refer to "Derating Curve") ; Optional models (SC-suffix): -40 ~ +105℃
EMC	Compliance to EN55032 class B, EN61000-4-2,3,4,5,6,8
Temp. Coefficient	0.03% / ℃ (0 ~ 85℃)
Dimension (LxWxH) (mm)	12.910.97.1mm (0.500.430.28 inch)
Potting material	UL 94V-0 rated
