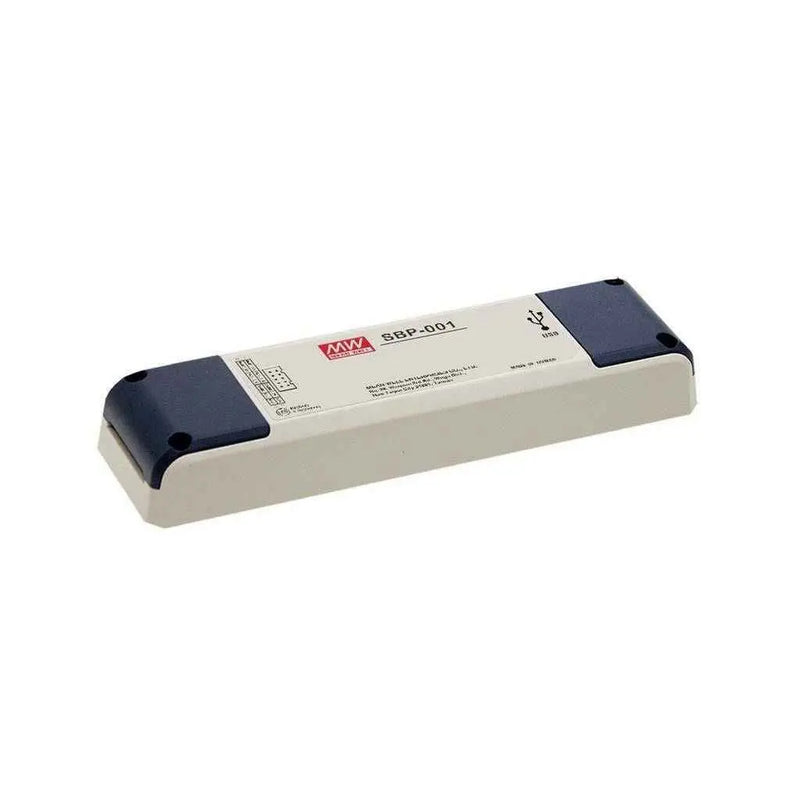

SBP-001

$47.19
Availability: Out of stock
ℹ️ Lead time for quantities greater than shown, contact us
Quantity Prices
Quantity
Unit Price
10+
$44.83
20+
$43.89
50+
$42.94
100+
$42.00
200+
$41.06
*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Waterproof
Non-waterproof
Dimensions
6.49 x 1.81 x 0.90 in
Weight
0.26 lbs

Features

For MEAN WELL's intelligent battery charger
Simple connection and configuration
No need of battery or AC power
LED status indicator
Communication cables of SBP#1,SBP#2,SBP#3,SBP#4 included (USB cable Type A-Mini USB is not included)

General Specification

COMM. PC Interface Mini USB
COMM. programming interface PMBus, CANBus, UART
LED indicator Green:3.3V interface  Orange:5V interface
Vibration 10~500Hz, 2G 10min./1 cycle, period for 60min, each along X,Y,Z axes
Working temperature 0~+40ºC
Safety standards UL62368-1 CB, EAC TP TC 004 approved
EMC standards EN55032 class B, EN61000-3-2, -3, EAC TP TC020
Case No DAP-04
Dimension (LxWxH) (mm) 165x46x23
Packing 84pcs/11Kg
