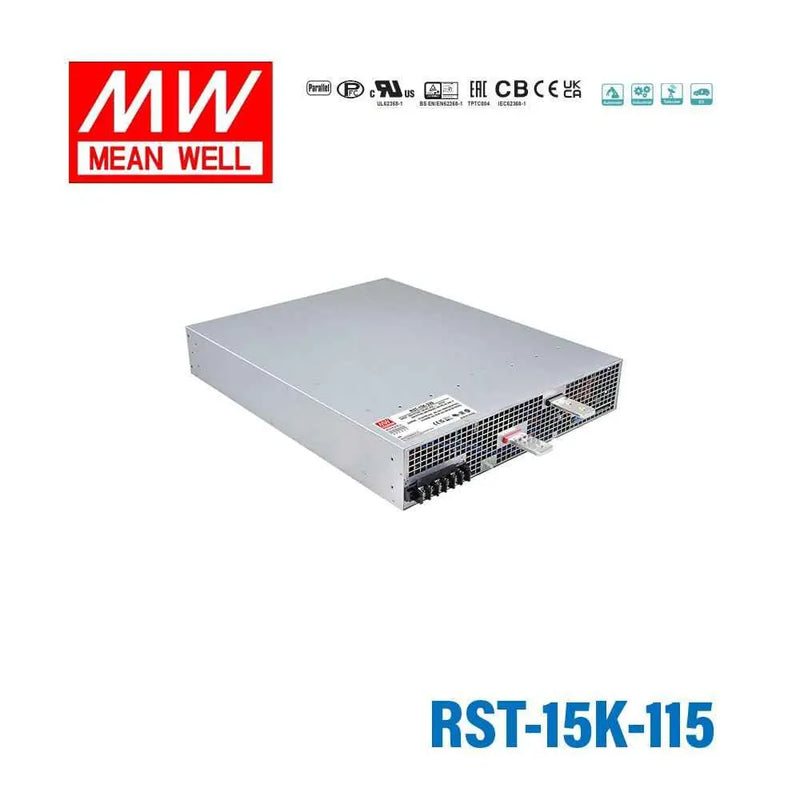

RST-15K-115

$3,019.00
Availability: Out of stock
ℹ️ Lead time for quantities greater than shown, contact us
Quantity Prices
Quantity
Unit Price
10+
$2,868.05
20+
$2,807.67
50+
$2,747.29
100+
$2,686.91
200+
$2,626.53
*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Output Voltage
115V
Rated Current
130A
Power Rating
14950W
Waterproof
Non-waterproof
Dimensions
21.25 x 16.69 x 3.28 in
Weight
55.11 lbs

Features:

  • 3ψ 3-wire / △196305VAC or 3ψ 4-wire / Y 340530VAC
  • High efficiency up to 94%
  • Forced air cooling
  • Output voltage and constant current level programmable
  • Wide voltage adjustment range 1~120%
  • Active current sharing up to 2 units(28.5KW)
  • Built-in remote ON-OFF control / Alarm signal
  • Protections: Short circuit / Overload / Over voltage / Over temperature / Fan fail
  • 5 years warranty

General Specification

AC input voltage range

3ψ 3W/ △196305VAC or 3ψ 4W/Y 340530VAC

AC inrush current (max.)

150A/230VAC(3ψ 3-wire / △) 100A/400VAC(3ψ 4-wire / Y)

Overload protection

100 ~ 107% of rated current

Protection type: Constant current limiting, unit will shut down after 5 sec. re-power on to recover

Over-voltage protection

| 145 ~ 166V | 273 ~ 312V | 420 ~ 480V |

Protection type: Shut down o/p voltage, re-power on to recover

Over temperature protection

Shut down o/p voltage, recovers automatically after temperature goes down

Withstand voltage

I/P-O/P:4.3KVDC I/P-FG:2.8KVDC O/P-FG:2.8KVDC

Working temperature

-30 ~ +70 (Refer to "Derating Curve")

Safety standards

UL62368-1, CAN/CSA C22.2 , TUV BS EN/EN62368-1, EAC TP TC 004 approved

Dimension (LxWxH)

540x424x83.5mm
